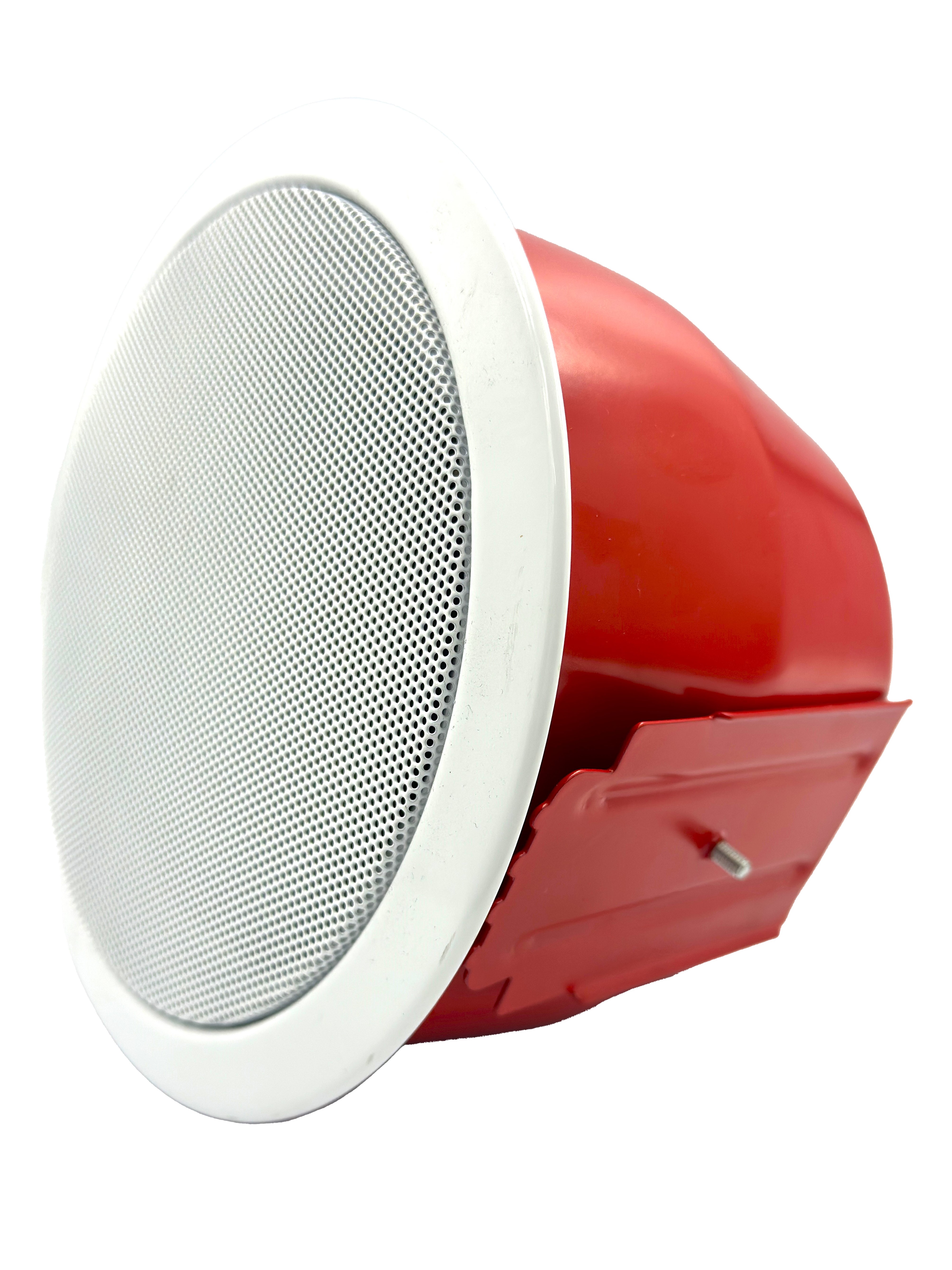

Adastra CF-5D Fire Rated EN54-24 100V Ceiling Speaker 5'' 6W 952.205UK

Adastra CF-5D Fire Rated EN54-24 100V Ceiling Speaker 5” 6W 952.205UK

€62.00

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity, and is fitted with a spring lo…

Delivery: 2-7 working days

SKU: MST-25037 Categories:, , Brand:

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity, and is fitted with a spring loaded mechanism for the speaker unit to pull into position for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

  • EN54-24 certified
  • Supplied with flush mount fire dome
  • 4 x 100V volume tappings
  • Spring loaded speaker retainers
  • All metal frame and basket
  • Fire-resistant cable to 95°C
  • Ceramic screw terminals

Specifications

  • 100V line tappings: 0.75W, 1.5W, 3W, 6W
  • Fire rating: EN54-24
  • SPL @ 1W/1m: 92dB
  • Frame material: Steel (powder coated)
  • Frequency response 130Hz – 15kHz
  • Cutout 160mmØ
  • Driver 135mmØ (5.25") reinforced paper cone
  • Dimensions 120 x 180mmØ
  • Weight 1.23kg

Additional information

Brand

Adastra
Woofer Size

5.25
Fire Rated (EN54-24)

Yes
Power (100V)

6W
MPN

952.205UK
