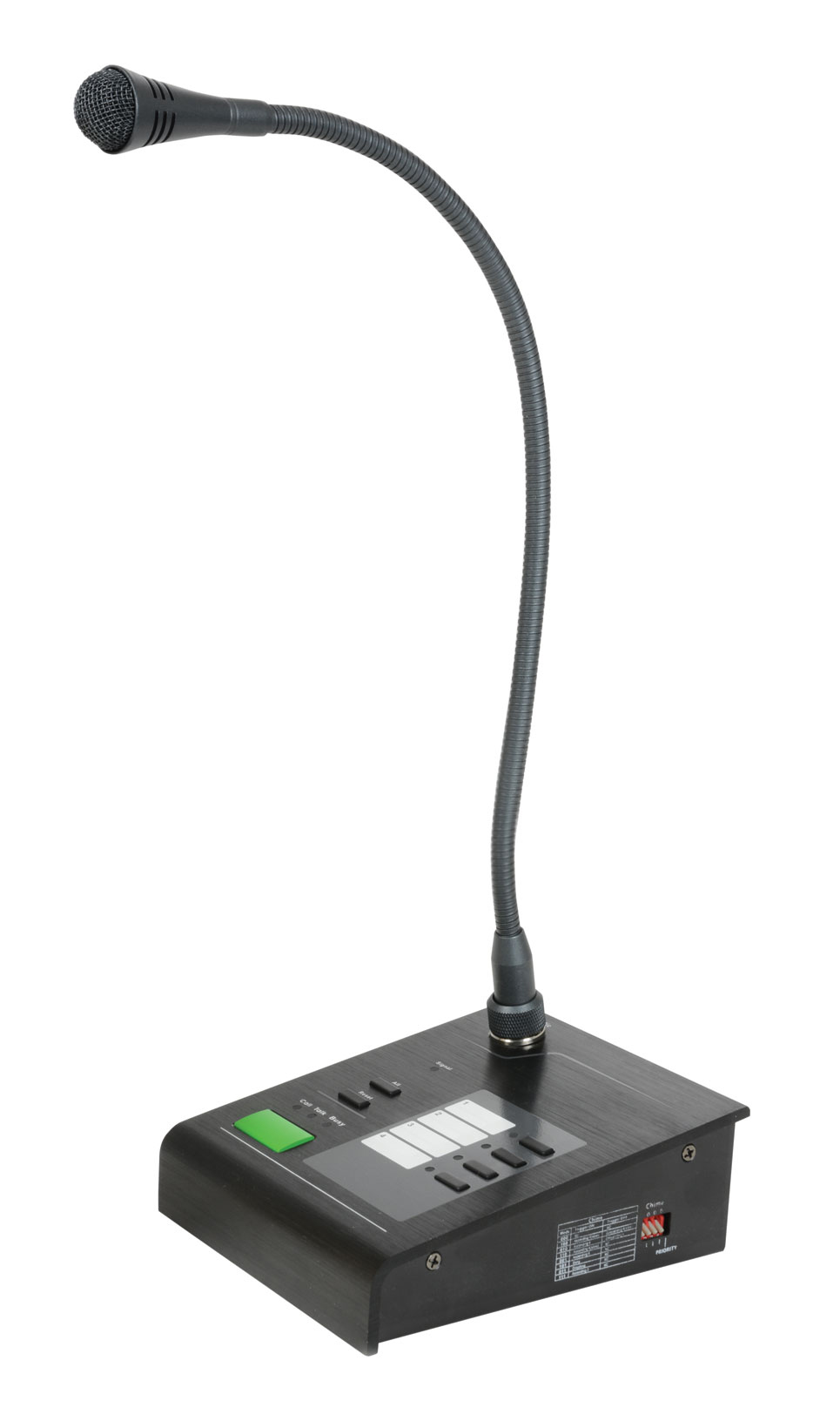

Adastra CS4 Call Station for RM244V and RM4460 953.146UK

• For use with the RM244V amplifier (953.144UK) and RM4460 (953.446UK)
• Assignable to individual or all 4 zones
• 8 selectable chime settings
• 3.5mm aux input
• Up to 1km remote wiring over CAT5
• Supplied with 1m RJ45 patch lead

Specifications

• Power supply 24Vdc, 500mA from RJ45 or optional adaptor
• Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
• Capsule back electret condenser
• Polar pattern Cardioid
• Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
• Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
• Frequency response : -3dB 150Hz – 22kHz
• Input level Mic: -46dBV, Aux: -10dBV
• Input impedance Mic: 600 Ohms, Aux: 50k Ohms
• Output level 10dBV
• Output impedance : balanced 600 Ohms
• S/N ratio -60dB (all channels selected)
• Interface RS-485 control
• Zone assign 4 zones or all selectable
• Dimensions 460 x 140 x 115mm
• Weight 670g
