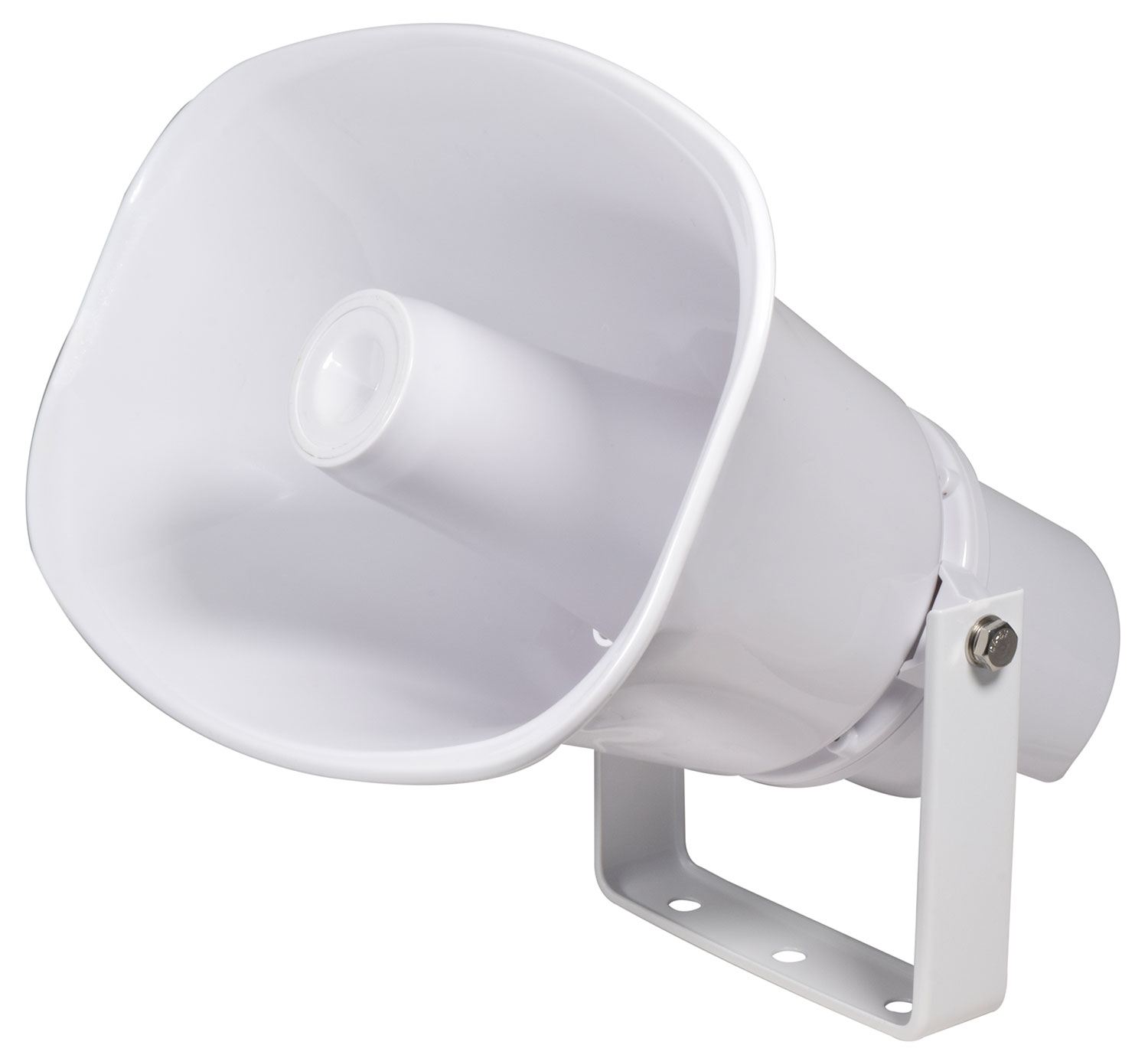

Adastra FH30V Fire Rated EN54-24 100V Horn Speaker 30W 952.247UK
€104.00
Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction b…
Delivery: 2-7 working days
Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.
- EN54-24 fire systems certification
- IP66 weatherproof
- 5VB fireproof ABS material
- 100V, 70V or 8 Ohm operation
- Ceramic terminals and thermal fuse
Specifications
- Construction…………………5VB fire-rated ABS housing, stainless metal bracket
- IP rating……………………….IP66
- Fire rating…………………….EN54-24 certified
- Connection…………………..Hard-wired fire-resistant cable, ceramic terminal block
- Circuit protection…………..Thermal fuse
- Power rms : 8 Ohms……..30W
- Tappings………………………3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
- SPL @ 1W/1m……………..113dB
- Frequency response……..300Hz – 6.5kHz
- Dimensions………………….300 x 282 x 203mm
- Weight…………………………2.26kg
Additional information
| Brand | Adastra |
|---|---|
| Type | Outdoor-Horn |
| Fire Rated (EN54-24) | Yes |
| Power 100V | 30W |
| Power 8Ω (max) | 30W |
| Colour | White |
| MPN | 952.247UK |
