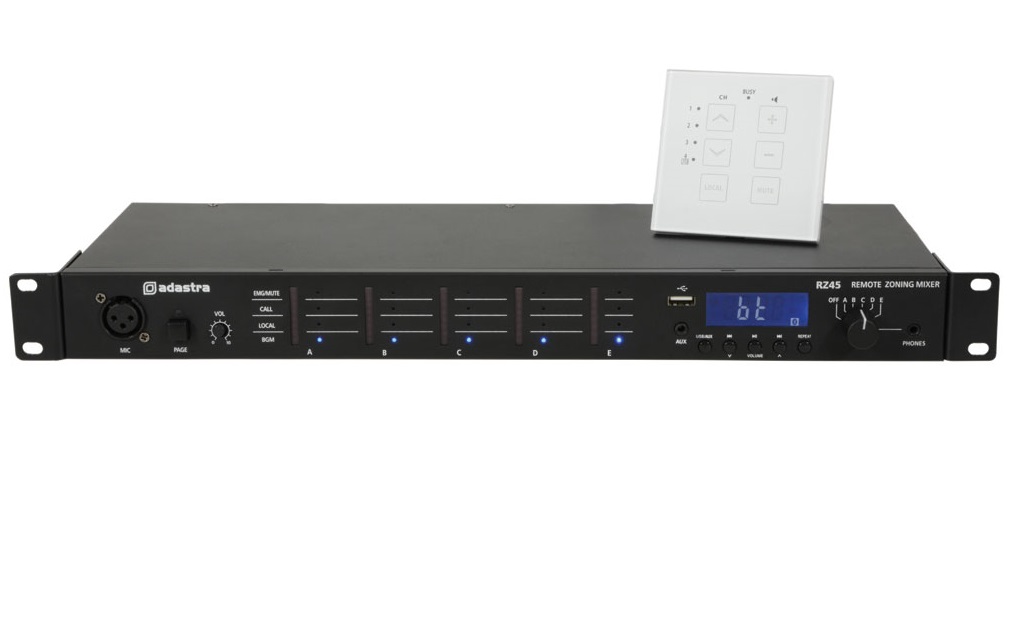

Adastra RZ45 Remote Zone Audio Matrix 953.045UK
€658.00
1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is includ…
Delivery: 2-3 working days
1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.
- Up to 5 remotely operated zones
- Remote wiring via standard network type cable
- 4 selectable input sources or local audio to any zone
- Inbuilt USB audio player with Bluetooth
- Emergency mute and audio in contacts
- Supplied with one touch remote wall plate (expandable up to 5)
The box for this item contains :
- RZ45 remote zone audio matrix unit
- TR86 remote touch panel
- 8-core RJ45 remote panel lead
- IEC mains power lead(s)
Specifications
- Power supply: 100-240Vac, 50/60Hz (IEC lead included)
- Fuse: T1AL
- Audio source: USB/Bluetooth media player
- Bluetooth version: v2.0
- Inputs: Paging mic. (XLR) + 3 x stereo line (RCA)
- Microphone: input sensitivity-41dBV
- Line input: sensitivity-12.5dBV
- Call station input: sensitivity+4dBV
- Emergency control: 24V mute contacts and emergency audio input
- EMG input: sensitivity-10dBV
- Signal to noise ratio: mic65dB
- Signal to noise ratio: line73dB
- Outputs: 5 x stereo zones (RCA)
- Output impedance: line600 ohms
- THD: +N<0.1% @ 1kHz
- Monitor outputs: Stereo 3.5mm headphone jack (assignable)
- Phantom power: +24V switchable for paging mic.
- Remote control connection: 8P8C (RJ45)
- Frequency response: ±3dB20Hz – 20kHz
- Attenuation: -30dB (paging)
- Dimensions: 483 x 177 x 44mm
- Weight: 1.76kg
Additional information
| Brand | Adastra |
|---|---|
| Amplifier Type | Matrix Amp |
| Zones | 5 |
| Zone Control | Wall Plate |
| USB / FM / BT | USB / BT |
| Rack Mountable | Yes |
| MPN | 953.045UK |
