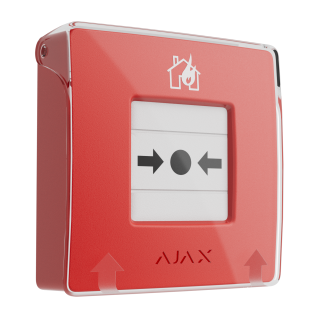

Ajax EN54 Fire Detection Manual Call Point Red

Wireless resettable button for manual fire alarm activation featuring programmable scenarios.

ManualCallPoint (Red) Jeweller is a fast and straightforward way for anyone to activate the fire alarm. Pressing the button triggers the built-in sirens of all fire detectors in the system and informs the users. Meanwhile, the central monitoring station (CMS) receives the alarm and calls emergency services. All the data is instantly available in Ajax apps: which device was triggered, when, and where. In a life-endangering situation, Ajax innovative features follow an alarm in seconds: automation scenarios de-energize the facility, turn the emergency lights, and unlock the exits.

Specifications

Sabotage Protection

• Tamper alarm : Notifies on attempts to detach the button from the surface or remove it from the mounting panel
• Protection against spoofing : Via device authentication
• Communication loss detection : After 36 seconds

Detection time depends on the Jeweller or Jeweller/Fibra settings

Power Supply

• Batteries : 2 × CR123A (pre-installed)

With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years

Enclosure

• Dimensions : 102 × 104 × 39 mm
• Weight : 214 g
• Operating temperature range : 0 °C to +50 °C
• Operating humidity : Up to 80%
