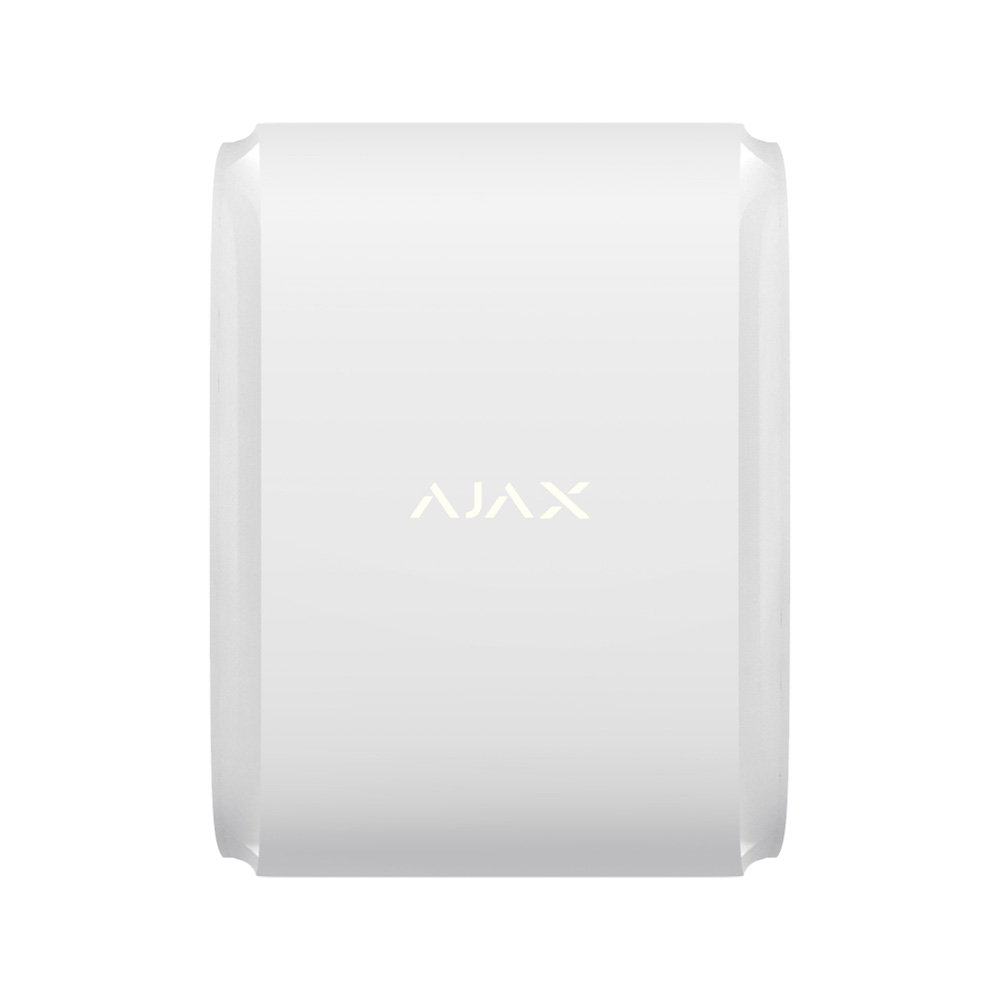

AJAX PIR DualCurtain Outdoor White

• DualCurtain Outdoor controls your property perimeter without creating obstacles for people who are already inside. Two independent optical systems with narrow viewing sectors and flexible settings allow you to accurately adjust 30 meters of the detection zone, excluding possible sources of false alarms. The ELSA (Extended Live Signal Analysis) unique software reacts to intruders, screening out triggers like natural interferences and pets
• On the sides of the detector there are two optical systems with narrow viewing sectors, each equipped with two PIR sensors. Thanks to temperature compensation, detection is always accurate. Sensor signals are analyzed by our new ELSA digital algorithm. Only if two sensors of the same optical system simultaneously capture human motion, the detector activates an alarm
• DualCurtain Outdoor features a technology to expand the protected area, which is unique among outdoor curtain motion detectors. When Near Area Detection is enabled, the detector’s upper PIR sensor receives an additional narrow viewing sector directed at the angle of 40 degrees down against the main sector. The feature allows both sensors to detect movement when a human crosses the protected perimeter closely to the detector’s body, addressing the problem of the blind spot, which is a typical problem of such detectors
• Near Area Detection is designed to protect windows and other passages that animals have no access to. The proximity of the detection zones’ vectors significantly reduces the efficiency of pet immunity
• The detection range of the two optical systems is adjusted independently. It allows you to precisely set the perimeter guarded by DualCurtain Outdoor and avoid false alarms caused by a bush swaying in the wind or people passing on a public sidewalk. So that the detector’s field of view is not blocked by a column or downpipe on a facade, the optical systems can be shifted vertically. In the app, you can adjust the sensitivity or deactivate one of the optical systems

Specifications

• Classification : Electro-optical radio channel security detector
• Type of detector : Wireless
• Installation method : Indoors / outdoors
• Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
• Sensing element : 4 × PIR sensor
• Motion detection distance : From 4 to 15 m (depending on settings) for each optical system
• Protection against false alarms : Available
• Alarm signal delivery time : 0.15 s
• Detection angle : Horizontal — 6° / Vertical — depending on settings
• Time for motion detection : From 0.3 to 2 m/s
• Sensitivity : Adjustable, 3 levels
• Power supply : 2 × CR123А batteries, 3 V
• Battery life : Up to 4 years
• Temperature sensor : Available
• Jeweller radio technology : Communication range a control panel — up to 1,700 m in an open space / Two-way communication between devices / Operating frequencies — 868.0–868.6 MHz1 / Self-adjusting RF output power — up to 20 mW / Block encryption based on AES algorithm / Detector ping interval — 12−300 s / Frequency hopping
• Operating temperature range : From −25°С to +60°С
• Permissible humidity : Up to 95%
• Protection class : IP54
• Anti-sabotage : Protection against forgery
• Jamming detection : Tamper-resistant
• Dimensions : 174 × 123 × 88 mm
• Weight : 615 g
• Warranty : 24 months
