AJAX Power Board for Hub2 12V

• A power supply unit, connecting the Hub 2 control panel to a low-voltage power source

Compatibility

• The power supply unit is compatible with Hub 2 central panel. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.

Installation

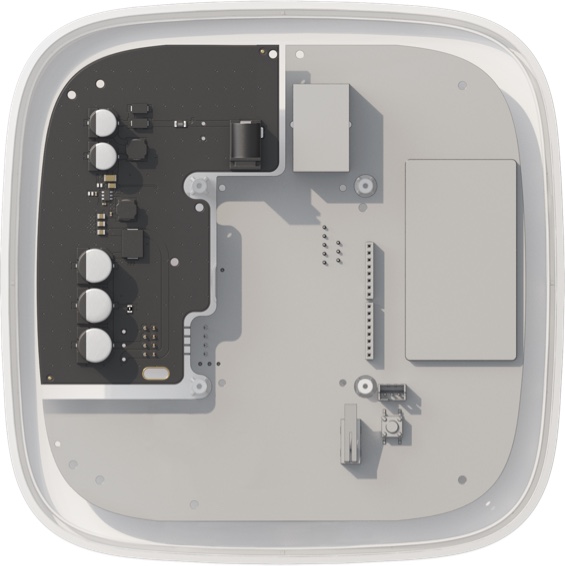

• 12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit

Specifications

• Input voltage : 8-20 V DC
• Output voltage : 4.8 V ± 3%
• Switch-on voltage : 8 V ± 2.5%
• Switch-off voltage : 6.9-7.5 V (depending on load)
• Input current : <1 А
• Output current : 1,5 А
• Connection : Socket: 6,5 × 2 mm  / Plug: 5,5 × 2,1 mm (power jack)
• Dimensions : 98 × 70 × 17 mm
• Weight : 28 g
