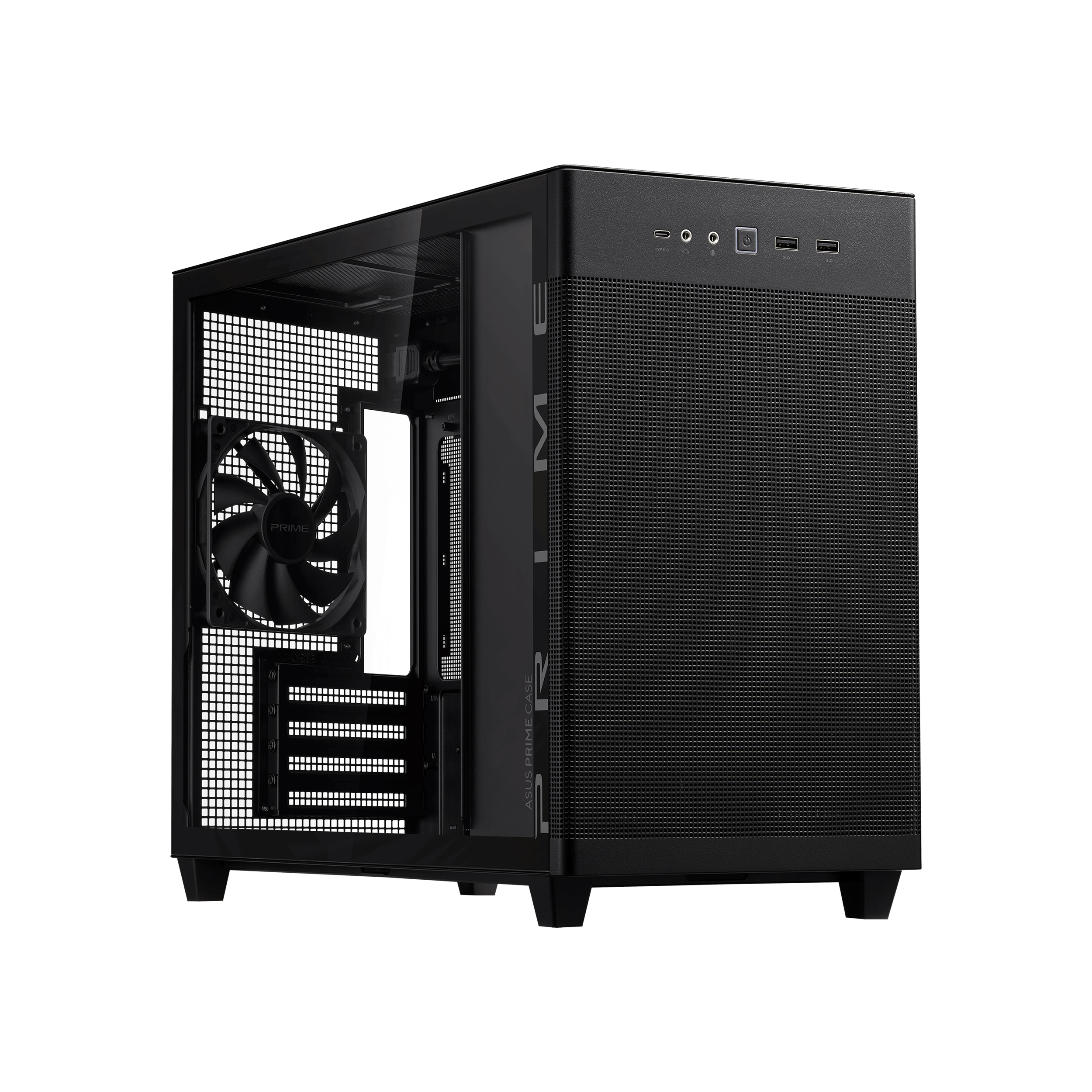

ASUS PC Case mATX Tempered Glass Panel USB-C PRIME AP201 Black

The ASUS Prime AP201 Tempered Glass version is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.

• Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
• Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
• Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
• Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
• Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Specifications

Dimensions & Build

• Form Factor: MicroATX / Mini-ITX (Supports smaller motherboards)

• Dimensions: 460mm (H) x 205mm (W) x 350mm (D) &#124 18.1" x 8.1" x 13.8"

• Material:

  • Frame: Steel chassis

  • Side Panel: Tempered Glass (4mm thickness)

  • Front & Top Panel: Perforated mesh for airflow

• Weight: 6.2 kg (13.7 lbs)

Cooling & Airflow

• Fan Support:

  • Front: 3 x 120mm / 2 x 140mm

  • Top: 2 x 120mm / 2 x 140mm

  • Rear: 1 x 120mm

  • Bottom: 2 x 120mm (PSU intake)

• Radiator Support:

  • Front: Up to 280mm

  • Top: Up to 240mm

• Dust Filters: Removable mesh filters on top, bottom, and front

Drive Bays & Storage

• 2.5" SSD Mounts: 3 (Tool-free)

• 3.5" HDD Mounts: 2 (Behind motherboard tray)

• Compatibility: Supports dual-chamber layout for better cable management

Expansion & Compatibility

• Motherboard Support: Micro-ATX, Mini-ITX

• GPU Clearance: Up to 338mm (With front fan installed)

• CPU Cooler Height: Up to 170mm

• PSU Support: ATX (Up to 180mm length)

• PCIe Slots: 4

Front I/O Panel

• USB 3.2 Gen 1: 1x USB-C, 2x USB-A

• Audio Jack: 1x Headphone/Mic Combo

• Power & Reset Buttons

Cable Management

• Routing Space: 20mm behind motherboard tray

• Velcro Straps & Tie-Down Points

Aesthetics & Lighting

• Tempered Glass Side Panel: Full-view design

• RGB Support: No built-in lighting, but compatible with RGB components

Included Accessories

• 1x 120mm Fan (Rear exhaust)

• Screw kit & cable ties
