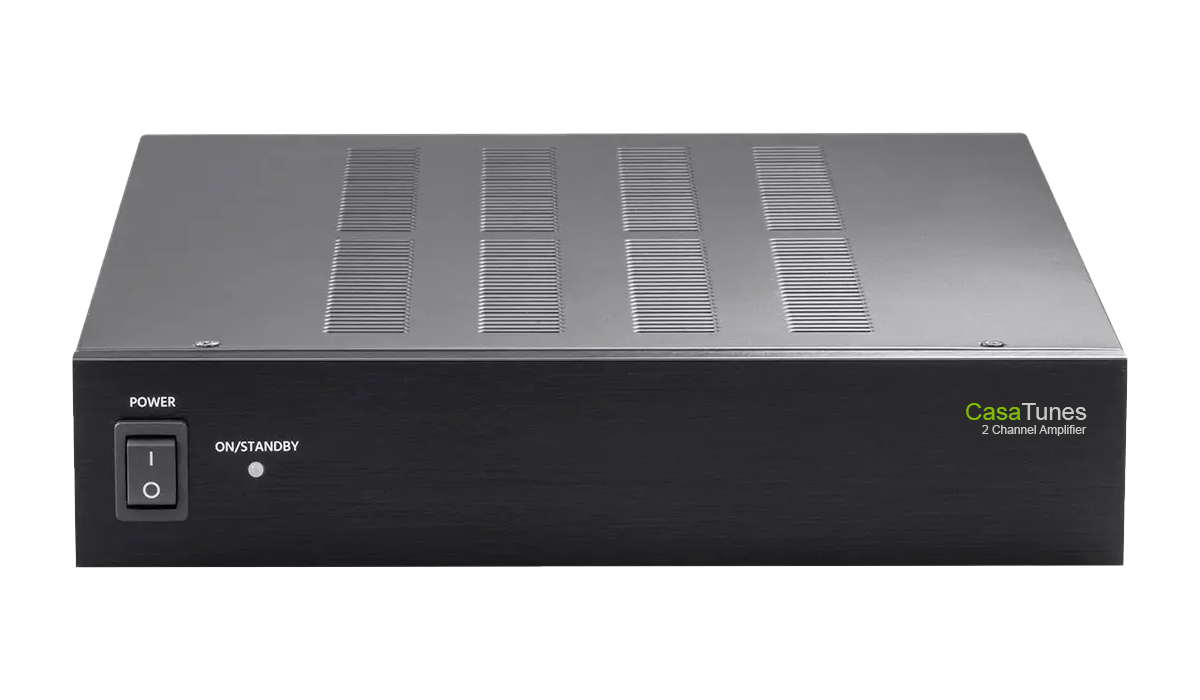

CasaTunes 2 Channels X 100W Amplifier

• Class-D amplifier providing 100 watts/channel (RMS) into 8 ohm loads or 125 watts/channel into 4-ohm loads
• Bridgeable output provides 225 watts into a single 8-ohm load
• 4-pole detachable speaker screw connector (Phoenix connector) with support for up to 12 AWG speaker wire
• 12-volt trigger input for power-on/off
• 12-volt trigger output for controlling other devices
• Buffered loop output of original signal for connecting additional amplifiers
• Rear panel volume gain adjustment
• Built-in thermal and short circuit protection circuits
• Includes rack-mount ears for mounting a single unit, or two units side-by-side

Specifications

• Audio Inputs: Stereo Analog RCA
• Audio Outputs: Buffered stereo analog RCA loop output
• Output Power: 100 watts per channel into 8 ohms (0.1% THD+N), or 125 watts per channel into 4 ohms (0.5% THD+N), or 225 watts into a single 8 ohm load (0.2% THD+N)
• Minimum Output Impedance: 4 ohms in stereo mode, 8 ohms in mono bridged mode
• Trigger Input: 12 VDC, 10 kΩ
• Trigger Output: 12VCD, 100mA
• Input Power: 100 – 240 VAC, 50/60Hz, 2.5A
• Standby Power Consumption: ≤ 0.5 watts
• Dimensions: 8.5” x 10.5” x 1.8” (216 x 267 x 45 mm)
