HomeShopSecurityCctv AccessoriesCasview BNC Male Connector Screw Type CBN-095

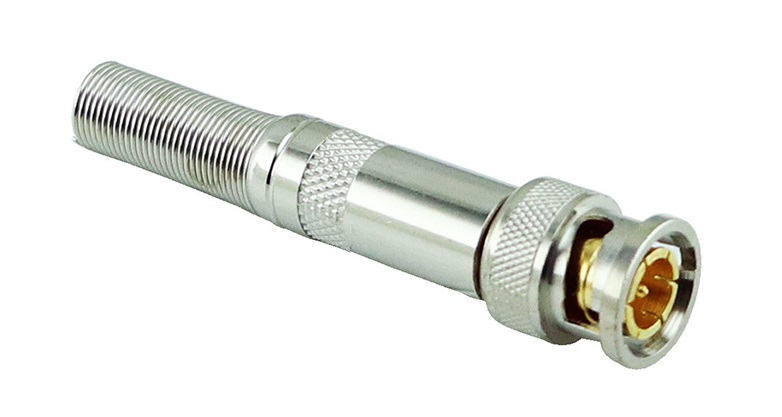

Casview BNC Male Connector Screw Type CBN-095

Casview BNC Male Connector Screw Type CBN-095

€3.00

In place of coaxial connectors, the Bayonet Neill-Concelman Connector (BNC Connector) is a coaxial RF (Radio frequency) electrical connector type A BNC connector is used in electronic architectures like audio, video, and…

Delivery: 2-7 working days

Add to wishlist
SKU: MST-27699 Categories:Cctv Accessories, DC Cables & Connectors, Security Brand: Casview
  • Description
  • Additional information
  • In place of coaxial connectors, the Bayonet Neill-Concelman Connector (BNC Connector) is a coaxial RF (Radio frequency) electrical connector type
  • A BNC connector is used in electronic architectures like audio, video, and networking to connect various radio frequencies up to 3GHz and voltages under 500V DC. Due to its low-signal-loss architecture, BNC is also utilized in high-grade analog communications test equipment and avionics. Nearly always, BNC connectors are used to terminate coaxial ethernet cables

Specifications

  • Model : CBN-095
  • Connectors : Male BNC
  • Material : Zinc Alloy Body + Copper Pin
  • Contact Resistance center conductor : ≤1.5mΩ; outer conductor≤1mΩ
  • Insulation Resistance : ≥5000MΩ
  • Frequency Range : 0~3GHZ
  • Disengage Force : ≥0.6N
  • Attenuation : 0.5dB type
  • Wire Type : Coaxial Cable
  • DC Loop Resistance : 52 ohms per 300m
  • Withstand Voltage : 1500V rms
  • Frequency Response : DC to 8 MHz
  • Working Temperature : -10°C to +70°C
  • Humidity : 0 to 95%
  • Packing : 100pcs/bag

Additional information

Brand

Casview

MPN

CBN-095
