Chord XU2-B Wireless UHF System 2x Beltpacks 171.015UK

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 2 channels of bodypack transmitters with a neckband and lavalier mic option. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

• Compact half-width rack receiver
• True diversity antennas with internal distro for reliable reception
• 10 groups of 9 selectable UHF carrier frequencies
• Selectable backlight colours for each channel
• 2 + 1 x 6.3mm mix output
• Settings sync I.R. from receiver to transmitters
• Colour TFT display for settings menu

Specifications

• Carrier frequencies: 823-832 / 863-865MHz
• Wireless range: Up to 60m
• Antenna connection: 2 x BNC
• Power supply: 12-18Vdc, 500mA (mains adaptor supplied)
• Batteries: 2 x AA per transmitter
• Weight : lavalier microphone: 23g
• Dimensions : lavalier microphone: 27 x 12mmØ
• Weight : neckband microphone: 28g
• Dimensions : neckband microphone: 180 x 140 x 60mm
• Weight : beltpack transmitter: 74g (no battery)
• Dimensions : beltpack transmitter: 90 x 60 x 25mm
• Dimensions : receiver: 205 x 205 x 44mm
• Weight : receiver: 755g

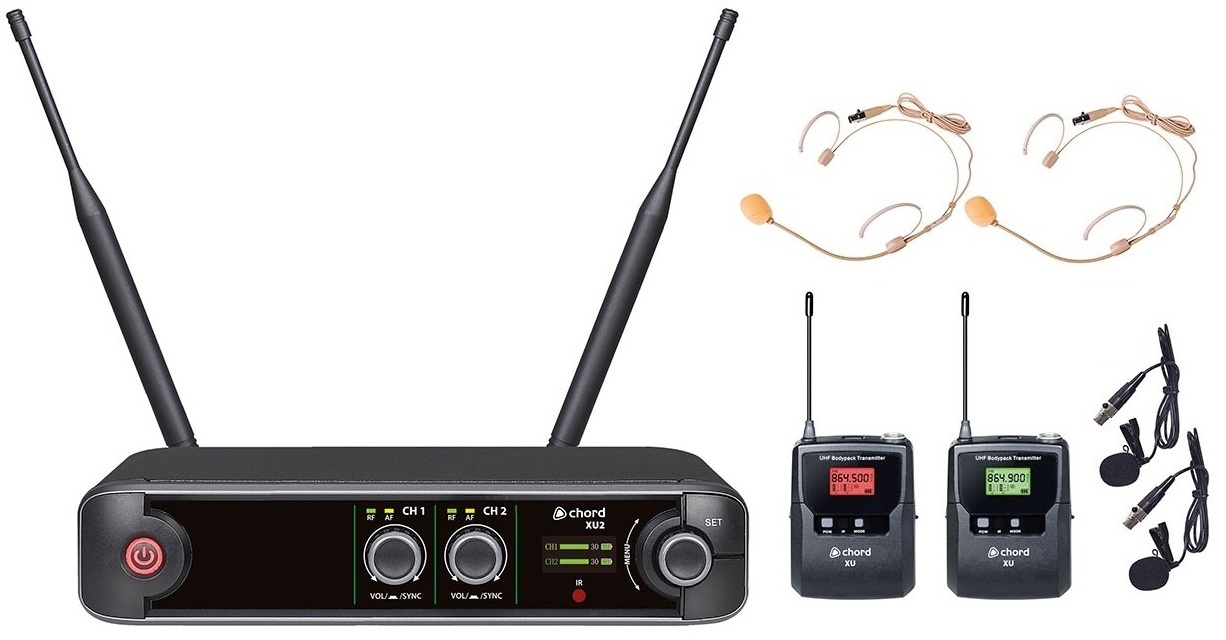

In the Box

• XU-series true diversity UHF receiver
• 2 bodypack transmitters with neckband & lavalier mics
• 2 x UHF antennas
• 2 x BNC antenna extension leads
• Rack-mounting brackets for 1 or 2 receivers in a 19" 1U space
• UK power adaptor
• 6.3mm male to male cable
• 4 x AA batteries
