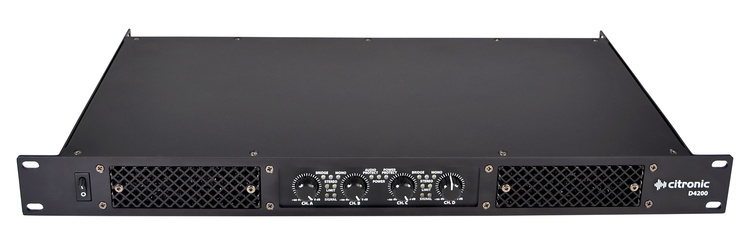

Citronic Amplifier D4200 4x200W 4ohm Quad Power Class-D 172.142UK

• Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplification circuit delivers accurate power-on-demand to four independent speaker outputs.
• Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration.
• For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers.
• For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.

Specifications

• Switchable bridge or parallel mono modes
• Switchable high and low pass filters
• Configurable as a quad, stereo or 2.1 system
• Fully balanced audio signal path
• Full audio and power protection with peak limiter
• Output rms @ 4 Ohms 4 x 200W
• Output  rms @ 8 Ohms 4 x 100W
• Bridge power @ 8 Ohms 2 x 400W (both pairs of channels bridged)
