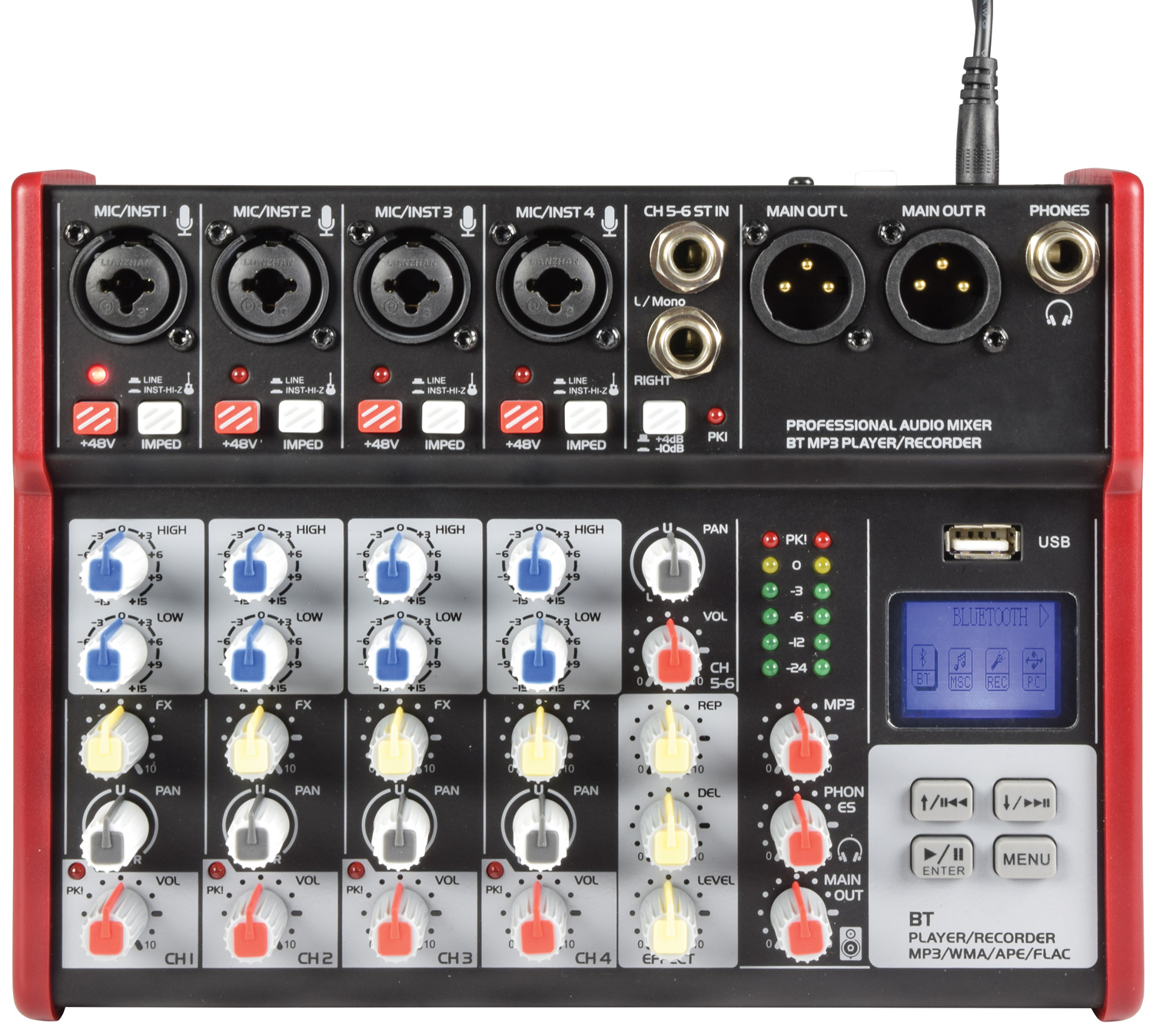

Citronic CSM-6 Mixer 6ch/USB/BT Play-Rec 170.872UK

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

• Integral USB multi-format audio player
• BT wireless connectivity
• Digital delay effect for vocals or instruments
• Individually switchable +48V phantom power
• Built in record function
• Supplied with DC power adaptor

The box for this item contains:

• CSM series compact mixer
• 5Vdc power adaptor

Specifications

• Power supply: 5Vdc 1A (adaptor included)
• Power consumption max.: 5W
• Gain: -14 to +40dB
• EQ: low±15dB @ 80Hz
• EQ: high±15dB @ 12kHz
• Phantom power: +48V individually switchable (XLR inputs only)
• Input impedance mic: 2k Ohms
• Input impedance instrument: 1M Ohms
• Input impedance line: 20k Ohms
• Audio source: Internal USB player/recorder & BT receiver
• Audio format: USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
• Bluetooth version: 2.1 + EDR
• Frequency response: 20Hz – 20kHz (±0.5B)
• THD +N: <0.03% @ 1kHz
• Dynamic range: 102dB
• Crosstalk: stereo92dB
• Output: Left + Right balanced XLR
• Output impedance: 120 Ohms
• Max. output level: 3Vrms
