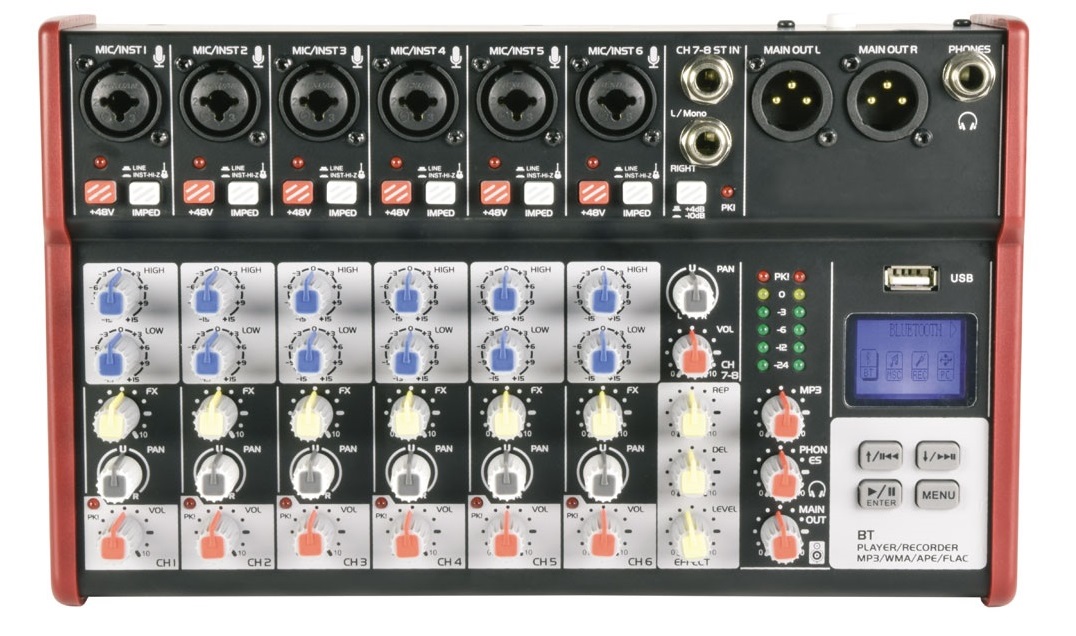

Citronic CSM-8 Mixer 8ch/USB/BT Play-Rec 170.873UK

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

• Integral USB multi-format audio player
• BT wireless connectivity
• Digital delay effect for vocals or instruments
• Individually switchable +48V phantom power
• Built in record function
• Supplied with DC power adaptor

Specifications

• Power supply 5Vdc 1A (adaptor included)
• Power consumption max. 5W
• Gain -14 to +40dB
• EQ: low ±15dB @ 80Hz
• EQ: high ±15dB @ 12kHz
• Phantom power +48V individually switchable (XLR inputs only)
• Input impedance : mic 2k Ohms
• Input impedance : instrument 1M Ohms
• Input impedance : line 20k Ohms
• Audio source Internal USB player/recorder & BT receiver
• Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
• Bluetooth version 2.1 + EDR
• Frequency response 20Hz – 20kHz (±0.5B)
• THD +N <0.03% @ 1kHz
• Dynamic range 102dB
• Crosstalk : stereo 92dB
• Output Left + Right balanced XLR
• Output impedance 120 Ohms
• Max. output level 3Vrms
• Inputs 6 x combo XLR/jack + stereo jack
• Dimensions 274 x 165 x 66mm
• Weight 1.45kg
