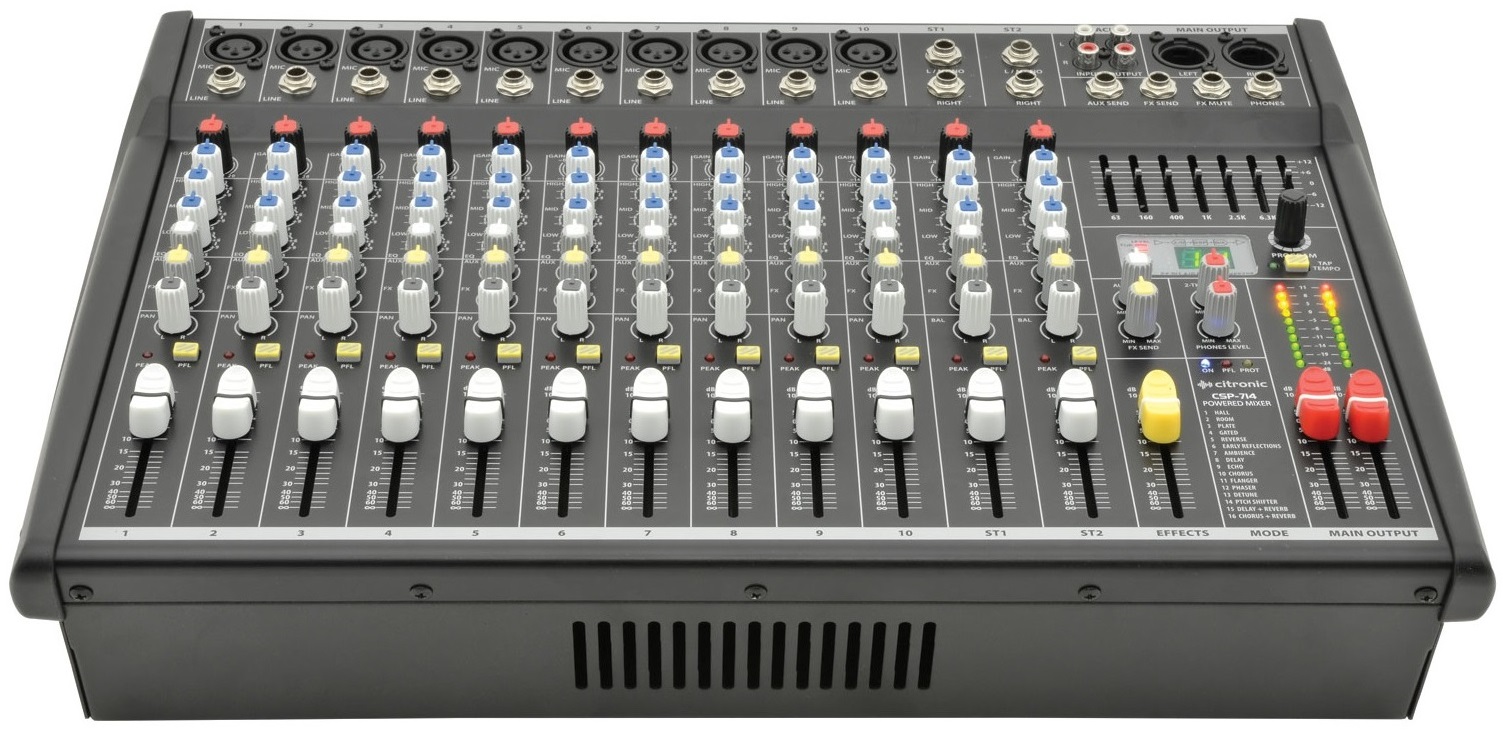

Citronic CSP714 v2 Powered Mixer 700W 170.845UK

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• Internal stereo power amplifier
• Balanced main outputs

Specifications

• Power consumption: 1000W
• Fuse: T15A (5 x 20mm, 250V)
• Output power @ 4 Ohms 2 x 350Wrms
• Output power : 8 Ohms 2 x 230Wrms
• Inputs : mic/line 10 x balanced XLRF/TRS jack
• Dimensions: 477 x 322 x 153mm
• Weight: 0.40kg
• Power supply: 230Vac 50Hz (IEC)
• Phantom power: +48V (XLR inputs)
• Input level: +24dBu
• Output level: line +26dBu
• Frequency response: 20Hz-30kHz (0.5dB)
• CMRR >74dB (mic 1kHz)
• THD +N <0.01% (channel to main out)
• Crosstalk >85dB (fader mute), >82dB (channel)
• Noise rms: 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
• EQ: high 12kHz ±15dB shelving
• EQ: mid 2.5kHz ±15dB band pass
• EQ: low 80Hz ±15dB shelving
• Input impedance: mic (balanced) 2k Ohms
• Input impedance: line (balanced) 10k Ohms
• Sensitivity: mic -60 to +14dBu
• Sensitivity: line -40 to +14dBu
• 2-track: 2 x RCA in & out (-2dBu)
• Effects: 16 program DSP (24-bit sigma-delta, 40khz)
• Output impedance <75 Ohms
• Headphone output: 6.3mm jack, 30-600 Ohms
• Speaker: outputs L+R SPK connectors
