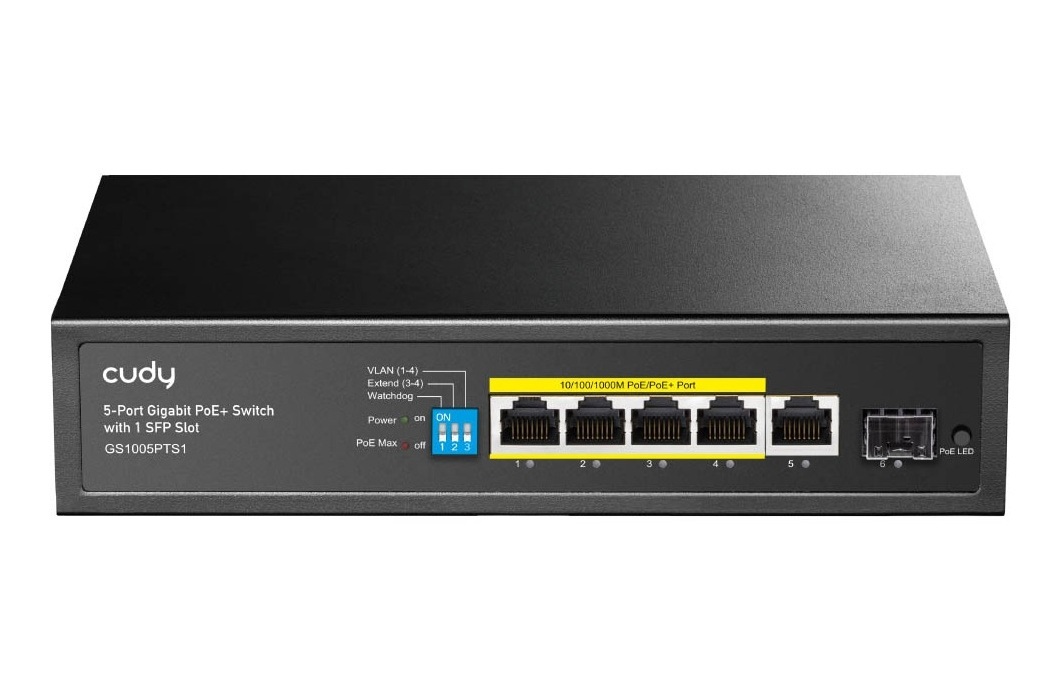

Cudy Switch POE Gigabit 4POE + 1GbE + SFP Port 120W GS1005PTS1

The Cudy GS1005PTS1 4.0 is a robust 5-Port Gigabit PoE+ Unmanaged Switch equipped with an additional dedicated 1G SFP uplink slot, meticulously engineered for professional installations and high-demand retail tech users. Delivering a generous 120 W total power supply, it supports standard 802.3at/af PoE configurations while boasting an enhanced power output of up to 60 W on its first port to easily fuel heavy-duty hardware like PTZ cameras or multi-band access points. Encased in a fanless, highly resilient metal housing, this hardware-driven switch features multi-mode configuration switches and automated PoE Auto Recovery, ensuring a perfectly stable and seamless plug-and-play experience.

• High-Power PoE Delivery: Features 4 Gigabit PoE+ ports backed by a robust 120 W power supply, pushing a massive 60 W output on Port 1 and up to 30 W on Ports 2 through 4.
• Flexible Dual Uplinks: Outfitted with 1 dedicated Gigabit Ethernet uplink and 1 dedicated 1G SFP optical slot to seamlessly bridge local copper hardware and long-distance fiber networks.
• Dedicated Hardware Controls: Integrates independent manual toggle switches on the chassis for direct physical activation of Extend mode, VLAN security isolation, PoE Watchdog, and a PoE LED toggle.
• Intelligent Auto Recovery: Employs an automated PoE Watchdog system that tracks client port activity, autonomously cycling PoE power to reboot connected devices if they freeze or become inactive for 5 minutes.
• Industrial EMC Defenses: Built to withstand harsh environments with premium Electrostatic Discharge (ESD) shielding and multi-level lightning surge protection to maintain optimal network uptime.

Specifications

• Model Version: GS1005PTS1 4.0
• Interfaces: 5 × 10/100/1000 Mbps RJ45 Ports (including 4 × PoE Ports #1-#4 + 1 × Uplink Port), 1 × 1G SFP Slot
• Max Switching Capacity: 12.5 Gbps
• Max Forwarding Rate: 8.929 Mpps
• MAC Address Table: 2048 entries
• Packet Buffer: 1 Mbit
• Jumbo Frame: 15 KB
• PoE Protocol Standards: IEEE 802.3af (PoE, 15.4 W), IEEE 802.3at (PoE+, 30 W), IEEE 802.3at (4-Pair, Enhanced 60 W)
• PoE Power Allocation: Port 1: ≤ 60 W; Ports 2–4: ≤ 30 W each
• Total PoE Budget: 120 W
• Hardware Switches: Extend On/Off, VLAN On/Off, PoE Watchdog On/Off, PoE LED Toggle
• Mode Definitions: VLAN Mode (Isolates downlink ports #1-#4 to prevent client communication except to uplinks), Extend Mode (Reduces ports #3-#4 speed to 10 Mbps for data & PoE extensions up to 250 m)
• PoE Management Priority: Intelligent Power Management (Automatically disconnects the lowest priority/lastly powered device if total consumption exceeds budget)
• LED Indicators: Power, PoE Max, PoE Status (per PoE port), Link/ACT (per Ethernet port)
• Surge Protection: Power DM 2 kV, CM 4 kV; RJ45 CM 4 kV
• ESD Protection: Contact Discharge 6 kV, Air Discharge 8 kV
• Cooling Mechanism: Silent Cooling System (Fanless)
• Casing Material: Metal
• Dimensions (W × D × H): 200 × 118 × 44 mm
