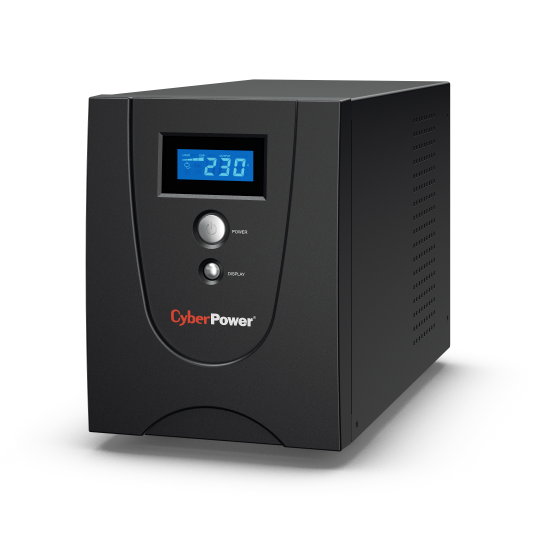

CyberPower VALUE2200 2200VA/1320W Line Interactive UPS LCD

CyberPower Value2200EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.

Through the USB or serial connection, PowerPanel® Personal Edition management software automatically saves computer files and safely shuts down the system during a power outage. It also allows users to perform scheduled shutdowns and self-diagnostics, and provides monitoring of power voltage readings and approximate backup time.

FEATURES:

• Line-interactive UPS Topology
• Energy Saving Technology
• Simulated Sine Wave Output
• Automatic Voltage Regulation (AVR)
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• LCD Status Display
• PowerPanel® Management Software
• Tower Form Factor

TYPICAL APPLICATION

• Home
• SOHO Office
• Office
• Back Office
• POS Systems
• Home Theater Systems
• Security Systems
• Surveillance Systems
• Telecom Devices
• Networking Devices
• NAS/Storage Devices
• Multimedia Devices
• Computers
• Workstations

Specifications

GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology

INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 165 ~ 280
Input Frequency (Hz): 50 ± 5, 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14

OUTPUT
Capacity (VA): 2200
Capacity (Watts): 1320
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) – Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) – Battery & Surge Protected: 6
Typical Transfer Time (ms): 4

BATTERY
Runtime at Half Load (min): 7
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0086
RBP Quantity (pcs): 2

SURGE PROTECTION & FILTERING
Surge Suppression (Joules):125
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

MANAGEMENT & COMMUNICATIONS
LCD Panel: Yes
LCD Information Display: Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information
LCD Setting & Control: Alarm Setting
HID Compliant USB Port(s): 1
Serial Port: RS232
Audible Alarms: Battery Mode , Low Battery , Overload ,Overcharge, UPS Fault
Power Management Software: PowerPanel® Personal Edition

PHYSICAL
Form Factor: Tower
Enclosure Construction: Metal
Color: Black

PHYSICAL SIZE – UPS MODULE
Dimensions (WxHxD) (mm.): 140 x 180 x 326
Weight (kg.): 14.5

ENVIRONMENTAL
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 90
Operating Elevation (feet/meters): 0-10,000 feet (0-3,000 meters)
Storage Temperature (°C): -20 ~ 50
Storage Relative Humidity (Non-condensing) (%): 0 ~ 90
Online Thermal Dissipation (BTU/hr): 198

CERTIFICATIONS
Certifications: CE,EAC
RoHS: Yes
