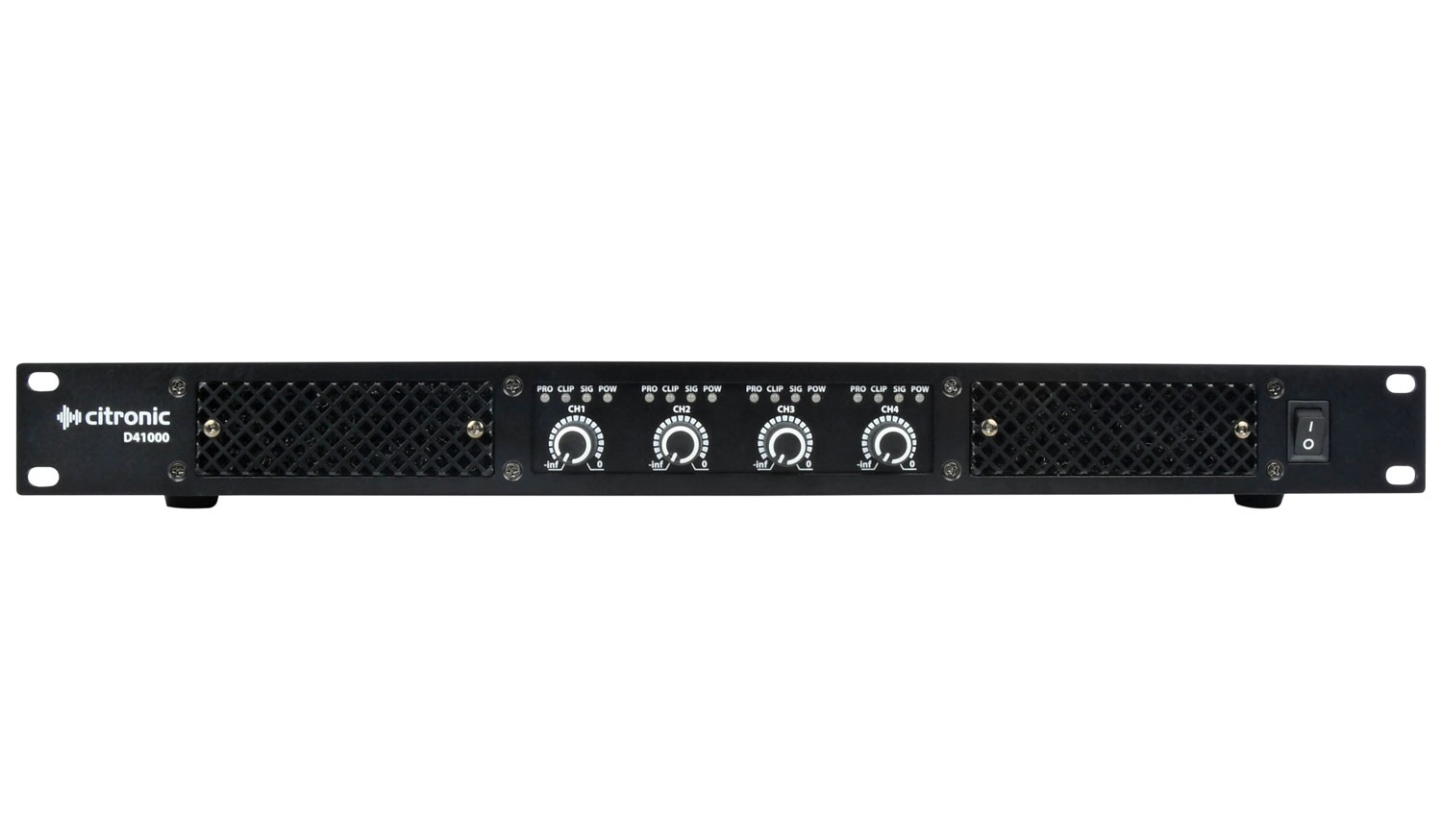

Citronic D41000 Quad Power Class-D 4ohm Amplifier 4x1000W 172.149UK

Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplifiication circuit delivers accurate power-on-demand to four independent speaker outputs. Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration. For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers. For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.

• Switchable bridge or parallel mono modes
• Switchable high and low pass filters
• Configurable as a quad, stereo or 2.1 system
• Fully balanced audio signal path
• Full audio and power protection with peak limiter

Specifications

• Output : rms @ 8 Ohms : 4 x 600W
• Output : rms @ 4 Ohms : 4 x 1000W
• Bridge power @ 8 Ohms : 2 x 1800W (both pairs of channels bridged)
• Modes : 2 x Stereo, Parallel (mono), Bridge (mono)
• Input sensitivity : 0dB = 0.775Vrms
• Crossover : Input A 120Hz LPF and C+D 120Hz HPF (all switchable)
• Inputs : 4 x XLR female
• Sound output : 4 x SPK connectors
• Power supply : 100-240Vac, 50/60Hz (Powercon)
• Power supply : 220-240Vac, 50/60Hz (IEC)
• Weight : 6.400kg
• Dimensions : 482 x 320 x 44mm (without feet)

In the Box

• D-series quad power amplifier
• IEC power lead(s)
