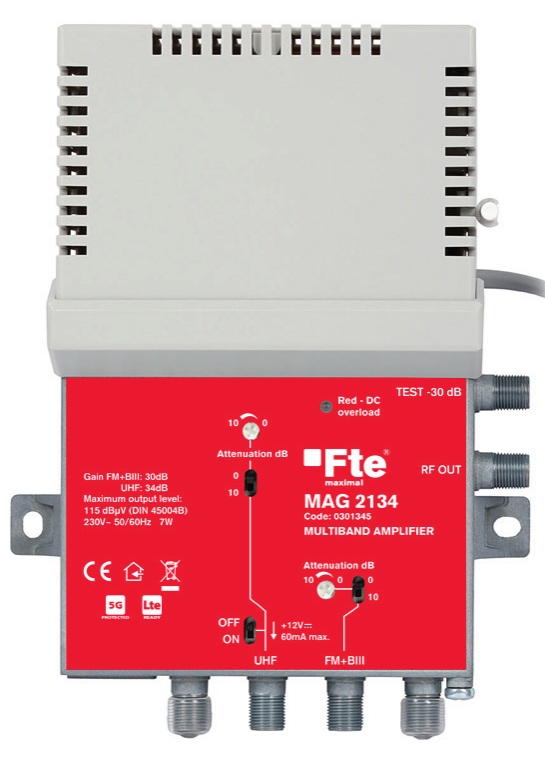

FTE MAG2134 Multiband Amplifier 1xUHF/VHF/FM 34dB Gain 115dB Max Output
€156.00
Inputs : 1x FM+BIII, 1 UHF Output : 1 + 1 Test (-30dB) Frequency range : FM+BIII (88..108MHz) (174..230 MHz) Frequency range : UHF 470..694 MHz Gain : FM+BIII : 30 dB Gain : UHF : 34 dB Noise figure, typical : FM/BIII…
Delivery: 2-3 working days
- Inputs : 1x FM+BIII, 1 UHF
- Output : 1 + 1 Test (-30dB)
- Frequency range : FM+BIII (88..108MHz) (174..230 MHz)
- Frequency range : UHF 470..694 MHz
- Gain : FM+BIII : 30 dB
- Gain : UHF : 34 dB
- Noise figure, typical : FM/BIII < 6dB
- Noise figure, typical : UHF < 5dB
- Maximum output level : IMD3=60dB (DIN45004B) 115 dBµV, IMD3=60dB 112 dBµV
- Gain adjustment : 0 / -20 dB
- Return loss : >10 dB
- Preamplifiers feeding : 12V 60 mA Max.
- Supply voltage limit values and power consumption : 200-250V~ 50/60 Hz / 7W (Without external DC loading)
- Operative temperature range : -20º / +50ºC
Additional information
| Brand | FTE Maximal |
|---|---|
| Type | Multiband Amplifier |
| Inputs | 2 |
| UHF Inputs | 1 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 34db |
| Total Output | 115db |
| MPN | 0301345 |
