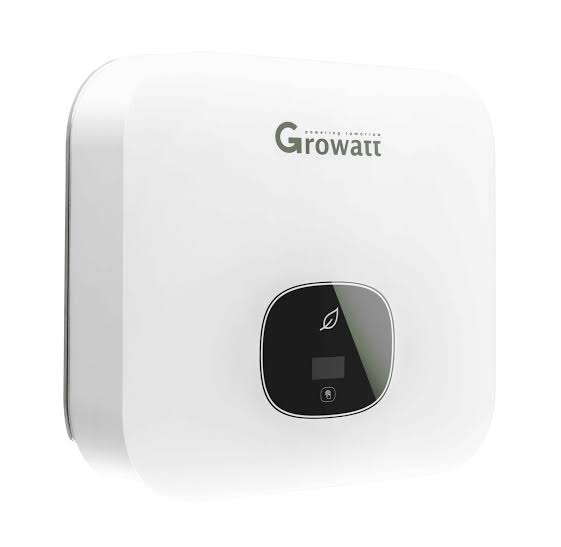

Growatt Single Phase 6KW Hybrid Inverter IP66 MIN 6000 TL-XH

Core Value

• Future proof battery ready
• Low initial investment

High Yields

• DC/AC up to 2.0
• Max. efficiency 98.4%
• 2 MPPTs
• String current up to 16A

Safety and Reliability

• Type II SPD on AC&DC side
• Support export limitation

Innovation Points

• Integrated with backup function
• Whole-home backup
• Built-in Backup, Power Uninterrupted

BATTERY READY, FUTURE PROOF

• XH2 series is the latest smart residential on-grid inverter and has strong adaptability, which allows customers to have a low initial investment. The battery interface makes it easily extendable into a storage system in the future without extra device or retrofit cost, also supports 2 times power output. With string current up to 16A, it perfectly matches high-power PV modules, and the upgraded RJ45 port provides more convenient communication and installation

Specifications

Input data (DC)

• Max. recommended PV power(for module STC) : 10000W
• Max. DC voltage : 550V
• Start voltage : 50V
• Nominal DC voltage : 360V
• MPPT voltage range : 40V~540V
• No. of MPP tracker : 2
• No. of PV string per MPP tracker : 1
• Max. input current per MPP tracker : 16A
• Max. short-circuit current : 24A

Output data (AC)

• AC nominal power : 6000W
• Max. AC apparent power : 6000VA
• Nominal AC voltage : 180V-280V, 230V
• AC grid frequency (range) : 50/60Hz (45-55Hz/55-65Hz)
• Max. output current : 27.2A
• Adjustable power factor : 0.8leading…0.8lagging
• THDi : <3%
• AC grid connection type : Single Phase

Battery data (DC)

• Compatible battery : APX 5.0‑30.0P‑SO (5 kWh – 30 kWh)
• Operating voltage range : 260~550V
• Max. operating current : 17A
• Max. discharge power : 6kW
• Max. charge power : 6kW

Output (AC)

• AC nominal power : 6kW
• Peak output apparent power :  6000VA
• Nominal AC voltage : 230V, (180-280V)
• Max. output current : 27.2A
• AC grid frequency : 50/60Hz
• THDv : <3%

Efficiency

• European efficiency : 97.5%

Protection devices

• DC reverse polarity protection : Yes
• DC switch : Yes
• AC/DC surge protection : Type II
• Insulation resistance monitoring : Yes
• Grid monitoring : Yes
• AC short-circuit protection : Yes
• Ground fault monitoring : Yes
• Type II : Yes
• Residual-current monitoring unit : Yes
• AFCI protection : Yes
• Anti-islanding protection : Yes
• String fault monitoring : Yes

General data

• Dimensions (W / H / D) : 375 × 350 × 160 mm
• Weight : 10.8kg
• Operating temperature range : –30°C – +60°C
• Noise level : ≤29dB (A)
• Nighttime power consumption : < 3W
• Topology : Transformerless
• Cooling : Natural
• Protection degree : IP66
• Relative humidity : 0~100%
• DC connection : H4/MC4 (Optional)
• AC connection : Connector
• Display : OLED+LED/WIFI+APP
• Interfaces: RS485/CAN/USB : Yes,Optional
• Warranty：5/10 years

Certifications

• CE, UKCA, IEC62109, AS/NZS 4777.2, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN 50549-1,IEC 62116, IEC 61727, G98/G99, UNE 217001, UNE 206007, P012.2
