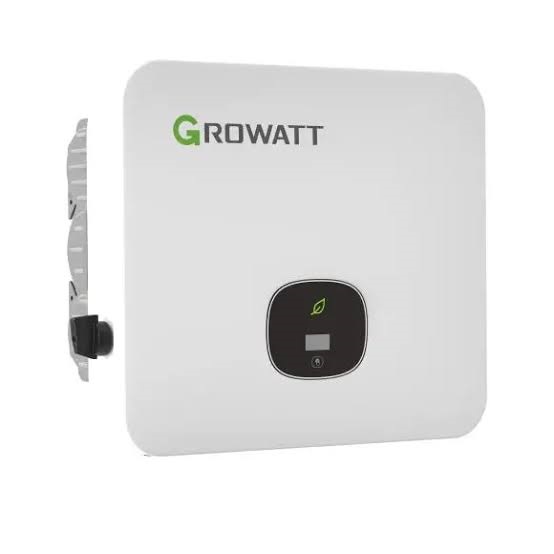

Growatt Three Phase 8KW Hybrid Inverter IP66 MOD 8KTL3-HU

Core Value

• Future proof battery ready
• Low initial investment

High Yields

• DC/AC up to 2.0
• Max. efficiency 98.6%
• 2 MPPTs

Safety and Reliability

• Type II SPD on AC&DC side
• Support export limitation
• AFCI function optional

Innovation Points

• Integrated with backup function
• Whole-home backup

Built-in Backup, Power Uninterrupted

• The MOD-HU is an advanced iteration evolved from the -XH Series inverters, offering built-in backup for seamless grid-to-offgrid switching—no external backup box required. With the MOD-HU, your critical loads remain protected, ensuring uninterrupted power supply when the grid fails. Its unified design simplifies installation while maintaining high efficiency and intelligent energy management

Specifications

Input data (DC)

• Max. recommended PV power(for module STC) : 16000W
• Max. DC voltage : 1000V
• Start voltage : 160V
• Nominal DC voltage : 600V
• MPPT voltage range : 140V~1000V
• No. of MPP tracker : 2
• No. of PV string per MPP tracker : 1
• Max. input current per MPP tracker : 20A
• Max. short-circuit current : 25A

Output data (AC)

• AC nominal power : 8000W
• Max. AC apparent power : 8800VA
• Nominal AC voltage : 220V/380V, 230V/400V
• AC grid frequency (range) : 50/60Hz (45-55Hz/55-65Hz)
• Max. output current : 13.3A
• Adjustable power factor : 0.8leading…0.8lagging
• THDi : <3%
• AC grid connection type : 3W+N+PE/3W+PE

Battery data (DC)

• Compatible battery : APX 5.0-30.0P-S2(5kWh-30kWh), APX 5.0-30.0M-S3(5kWh-30kWh)
• Operating voltage range : 600~980V
• Max. operating current : 25A
• Max. discharge power : 8kW
• Max. charge power : 15kW

Backup output (AC)

• AC nominal power : 8kW
• Peak output apparent power :  9.6kVA @10min
• Peak output apparent power on single phase : 2.67kVA
• Nominal AC voltage : 220/380V, 230/400V
• Max. output current : 14.5A
• AC grid frequency : 50/60Hz
• THDv : <3%

Efficiency

• European efficiency : 98.10%

Protection devices

• DC reverse polarity protection : Yes
• DC switch : Yes
• AC/DC surge protection : Type II
• Insulation resistance monitoring : Yes
• Grid monitoring : Yes
• AC short-circuit protection : Yes
• Ground fault monitoring : Yes
• Type II : Yes
• Residual-current monitoring unit : Yes
• AFCI protection : Yes
• Anti-islanding protection : Yes
• String fault monitoring : Yes

General data

• Dimensions (W / H / D) : 468/408/202mm
• Weight : 20kg
• Operating temperature range : –25°C – +60°C
• Noise level : ≤29dB (A)
• Nighttime power consumption : < 20W
• Topology : Transformerless
• Cooling : Natural
• Protection degree : IP66
• Relative humidity : 0~100%
• DC connection : H4/MC4 (Optional)
• AC connection : Waterproof PG connector+OT terminal
• Display : OLED+LED/WIFI+APP
• Interfaces: RS485/CAN/USB : Yes
• Monitor：Wilan-X2 : Yes
• Warranty：10 years

Certifications

• CE, N4105, EN50549-1, C10/C11, CEI0-21, G98, G99, G100, AS4777
