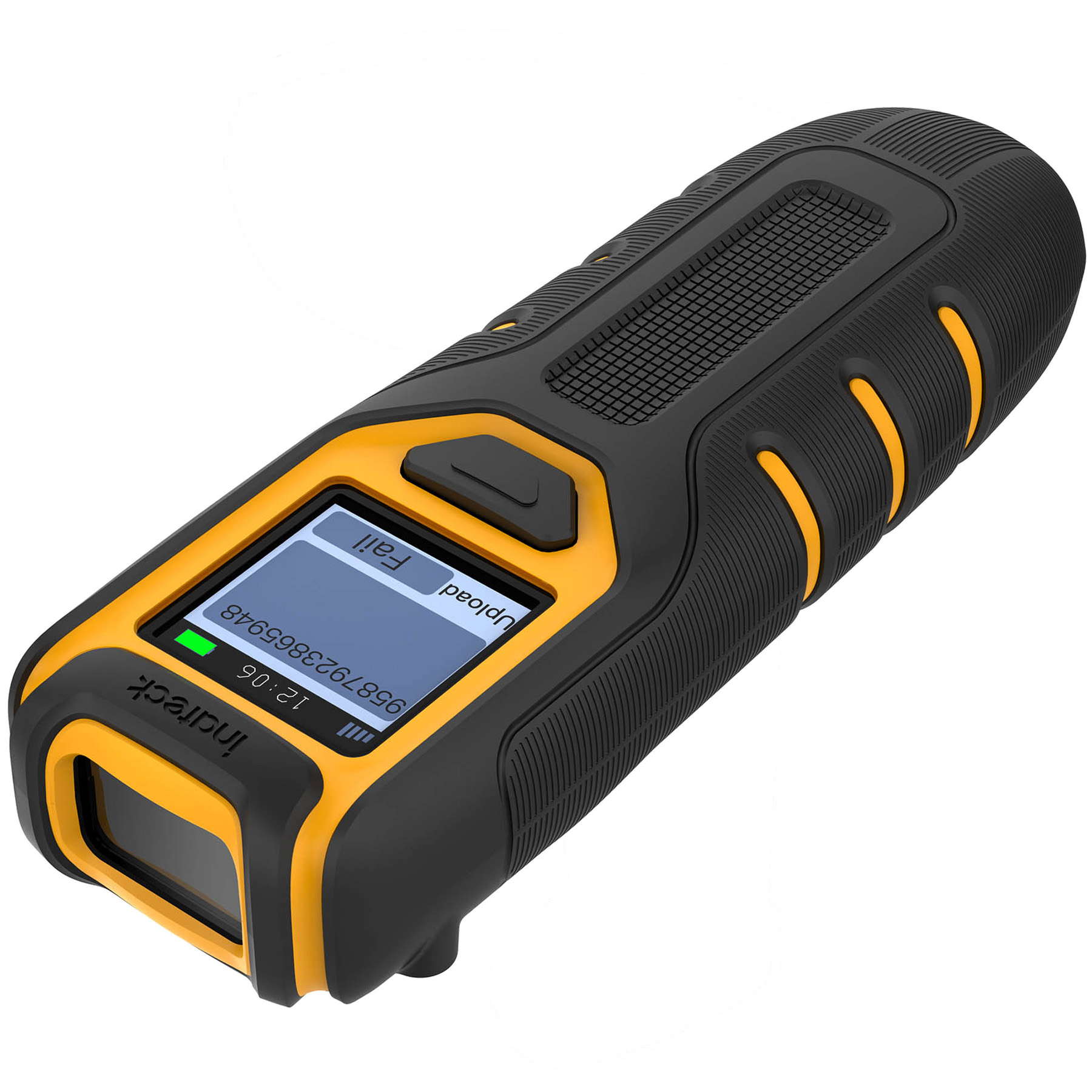

Inateck Barcode Scanner CMOS 1D/2D Wireless 2.4GHz/Bluetooth USB-A 1200mAh Portable & Display BCST-42 Green

The Inateck BCST-47 is a next-generation smart portable 2D barcode scanner designed to elevate efficiency for supply chains, enterprise logistics, and modern retail storefronts. Featuring an integrated 1.4-inch TFT display screen and dedicated App/SDK integration, this pocket-sized scanner offers operators immediate visual feedback on device status and scanned strings. Backed by a high-capacity battery that doubles the standard runtime of typical portable scanners, the BCST-47 ensures uninterrupted workflows across diverse industrial and retail environments

• Integrated 1.4-Inch TFT Display: Delivers instant, real-time feedback directly on the device, allowing users to track barcode strings, battery levels, and wireless connection status without looking at a host terminal.
• Double-Capacity Battery Performance: Equipped with an exceptional 2600 mAh lithium-ion battery that provides up to a week of operational standby time, significantly reducing charging cycles in intensive shift environments.
• Advanced App & SDK Customization: Supports quick device management and workflow integration via the Inateck Scanner application, allowing businesses to adjust alert configurations, toggle symbologies, and interface with proprietary software solutions.
• High-Accuracy CMOS Imaging: Effortlessly captures standard 1D, 2D, and QR codes from both printed paper labels and reflective smartphone or monitor screens, even handling colored or damaged barcodes with ease.
• Three-In-One Wireless Flexibility: Adapts instantly to any digital ecosystem with support for long-range 2.4GHz wireless via a USB receiver, Bluetooth 5.0 for mobile device pairs, and standard USB wired communication.

Specifications

• Model: BCST-47
• Material: PC, ABS, TPU
• Dimensions: 13.48 cm × 4.57 cm × 2.83 cm
• Weight: 105 grams
• Scanner Type: Portable 2D Handheld Imager with Display Screen
• Display Screen: 1.4-inch TFT Screen
• Image Sensor: 640 × 480 CMOS
• Light Source: Red LED
• Processor: 32-bit CPU
• Scanning Speed: 100 scans per second
• Minimum Resolution: ≥ 5 mil
• Scan Depth of Field: 4 cm to 30 cm
• Scan Width: 340 mm at 400 mm distance
• Scan Angles: Angle of rotation 360°, elevation angle ± 55°, declination angle ± 55°
• Minimum Barcode Contrast: 20%
• Scanning Methods: Manual Scan, Auto-Sensing Mode, Continuous Scanning Mode
• Connection Modes: Bluetooth 5.0, 2.4GHz Wireless (via USB Adapter), USB Wired
• Battery Capacity: 2600 mAh Lithium-ion
• Supply Voltage: DC 5V
• Notification Methods: TFT Screen Display, Buzzer, LED Indicator Light, Vibration Motor
• Supported 1D Barcodes: Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 93, Codabar, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, Matrix 2 of 5, IATA 2 of 5, MSI, Code 11, ISBN, ISSN, GS1 128, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited
• Supported 2D Barcodes: QR Code, PDF-417, Aztec Code, Maxi Code, Data Matrix, Han Xin Code
• OS Compatibility: Windows 11 / 10 / 8 / 7 / XP, Mac OS, Google Android, iOS, Linux
• Operating / Storage Temperature: 0 °C to 50 °C
