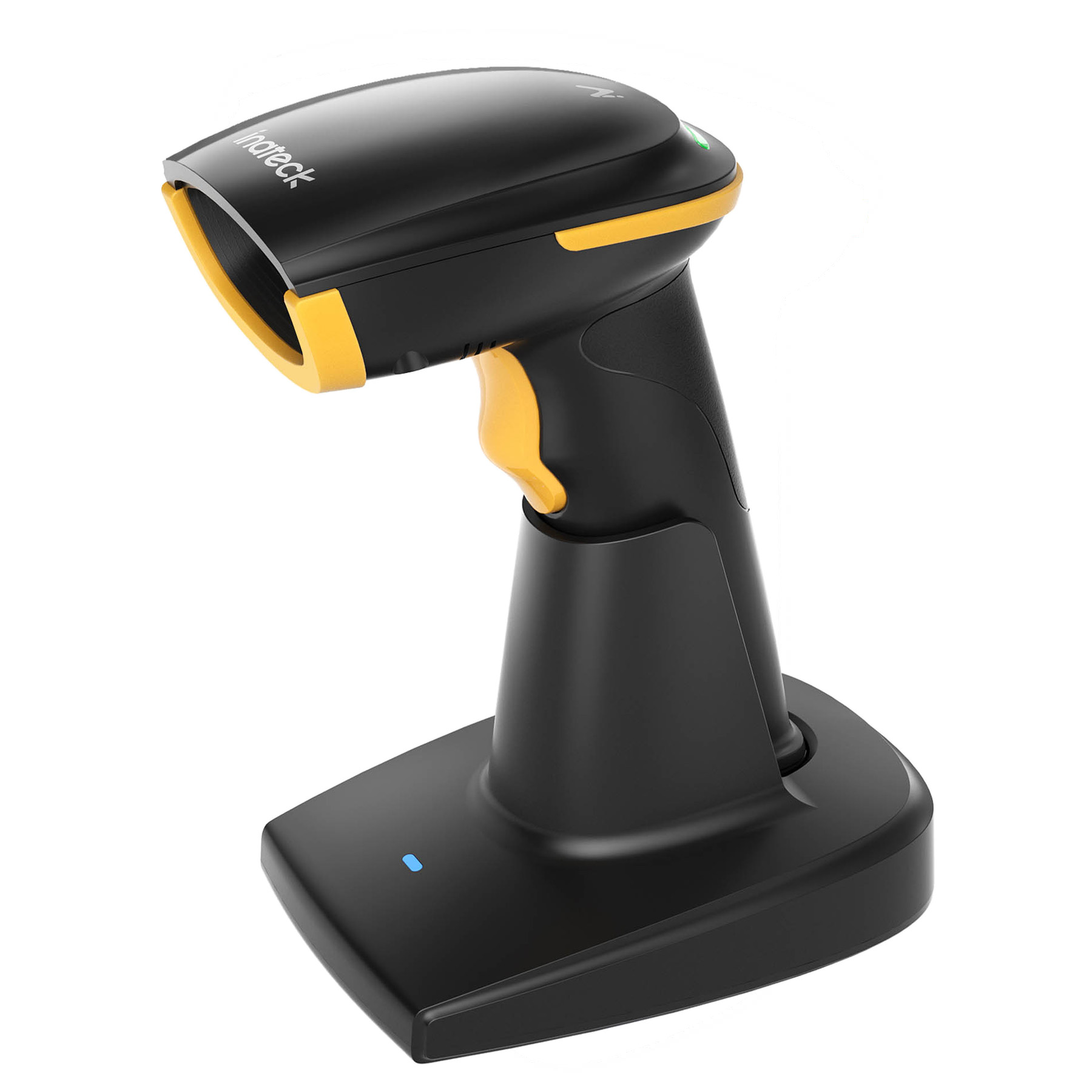

Inateck Barcode Scanner CMOS 1D/2D Wireless 2.4GHz/Bluetooth USB-A 2600mAh Charging Base AI BCST-36 Black

The Inateck BCST-36 is an intelligent, high-efficiency 1D/2D wireless handheld barcode scanner complete with a multi-functional smart charging and data transmission cradle. Outfitted with a professional 300,000-pixel CMOS imager and cutting-edge operational firmware, the BCST-36 effortlessly processes modern 2D QR codes and Data Matrix formats along with traditional 1D linear barcodes off glossy digital screens or standard paper stock. Designed for maximum agility across retail storefronts, production floors, and stockroom operations, it implements an AI-ready core with the official Inateck Scanner App and developer SDK ecosystem. This ensures rapid corporate configurations and smooth backend ERP data binding.

• Integrated Smart Charging Cradle: Features a dedicated, drop-in docking station that charges the device automatically while serving as a continuous data receiver for your computer via a single USB connection.
• Excellent CMOS Area Decoding: Driven by a premium 640 × 480 matrix engine optimized to scan dense, scratched, low-contrast, or distorted 1D/2D barcodes under sunlight or dim warehouse illumination.
• Adaptive Triple Connection Range: Offers instant switching between high-performance 2.4GHz wireless (up to 100 meters), mobile Bluetooth (up to 40 meters for tablet configurations), and plug-and-play wired USB.
• Ultra-Low Energy Management: Pairs an extra-large 2600mAh lithium battery with Inateck’s advanced power-saving algorithm to provide extended operational uptime and minimize multi-shift charging intervals.
• On-Board Inventory Cache Storage: Supports an autonomous Inventory Mode capable of storing up to 270,000 text-rich barcodes locally in flash memory, enabling independent stock-taking workflows with seamless batch uploads.

Specifications

• Model: BCST-36
• Color: Black + Yellow
• Material: PC + ABS + TPU (Shock-absorbing rubber protection shell)
• Dimensions: 90.9 mm × 68.3 mm × 165.1 mm
• Weight: 303 g
• Processor: 32-bit CPU
• Light Source: Red LED targeting
• Sensor:  640 × 480 CMOS Area Imager
• Scanning Speed: 100 scans per second
• Scan Mode: Image scanning
• Scanning Method: Manual Trigger / Automatic Scan
• Minimum Resolution: ≥ 5 mil
• Scan Depth of Field: 4 cm to 30 cm
• Scan Width: 300 mm @ 400 mm
• Barcode Angle Limits: Rotation angle 360°, elevation angle ±65°, declination angle ±65°
• Minimum Barcode Contrast: 20%
• Cylindrical Transversal Scan: Minimum 20 mm diameter
• Transmission Modes: 2.4GHz Wireless, Bluetooth, Wired USB Type-A
• Wireless Transmission Range: Up to 100 m (2.4GHz mode) / Up to 40 m (Bluetooth mode)
• Offline Storage Capacity: Up to 270,000 barcodes (13 characters each)
• Supported 1D Barcodes: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, ISBN, ISSN, MSI, UPC-A, UPC-E, Industrial 2 of 5, Standard 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, La Poste Code 128, FedEx, USPS
• Supported 2D Barcodes: QR Code, Data Matrix, PDF417, Aztec
• Compatible Operating Systems: Windows XP / 7 / 8 / 10 / 11, macOS, Android, iOS, iPadOS, Linux
• Software Integration Support: Inateck Scanner App, Inateck AI, and professional developer SDK platforms
• Notification Methods: Audible Buzzer, Multi-color LED indicator lights, Haptic Vibration feedback
• Battery Capacity: 2600mAh rechargeable lithium-ion battery
• Supply Voltage: DC 5V via USB interface or cradle contacts
• Operating / Storage Temperature: 0°C to 50°C
• Drop Resistance: Rated up to 1.2 m onto concrete surfaces
