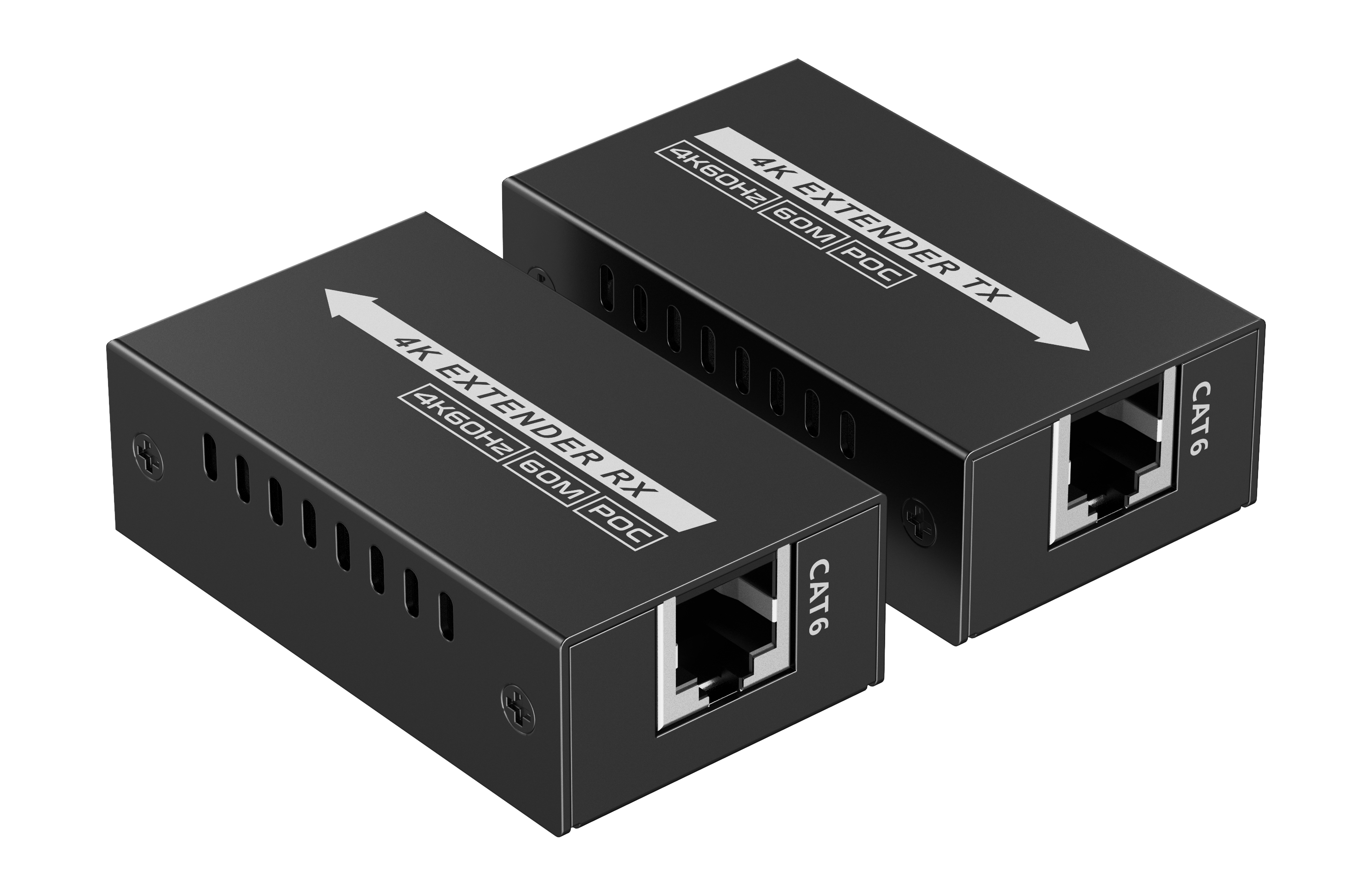

Lenkeng HDMI Extender over Ethernet 60m 4K POC LKV410P

• This is an HDMI point-to-point extender kit, it can realize zero-latency transmission
• The 4K@60Hz HDMI signal can be extended by 60m through CAT6/6A/7 network cable
• This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields

Specifications

• HDMI Length ≤5m
• Maximum transfer rate 18Gbps
• Maximum transmission bandwidth 600MHz
• EDID passthrough Yes
• Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4: 4:4）
• HDCP 2.2
• Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1920×1200, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
• Transmission distance CAT6/6A/7≤60m
• Audio formats LPCM/DTS 5.1/Dolby Digital 5.1CH
• Power Supply DC5V/0.5A
• Power Consumption TX/RX:＜2W
• Working temperature -20℃~60℃
• Storage temperature -30℃~70℃
• Humidity 0~90%RH（No condensation）
• Housing Metal
• Weight TX：85g，RX：72g
• Color Black
• Dimensions 67.0(L)* 40.0(W)*23.0(H)mm
• Protection ESD protection
• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
• Lightning protection, Surge protection
