Lenkeng HDMI Extender over Ethernet 70m 1080p LKV372N

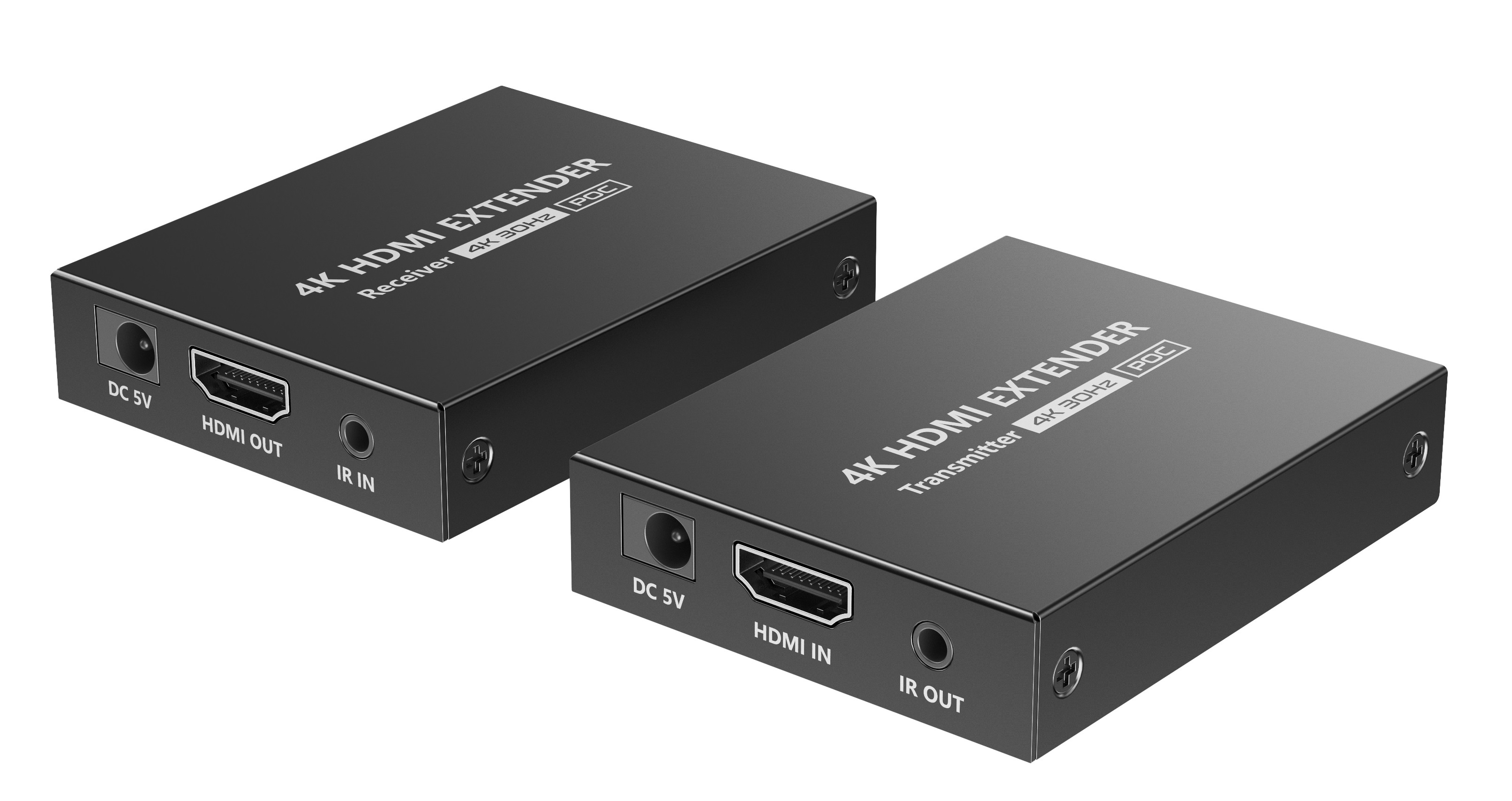

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

• 40 meters for 4K@30Hz signals
• 70 meters for 1080p@60Hz signals

Specifications

• Voltage/Current DC5V/500mA
• Power consumption TX<1.5W； RX<1.5W
• HDMI compliance HDMI 1.4
• HDCP compliance HDCP 1.4
• HDMI resolution 800×600、1024×768、1280×720、 1280×960、1366×768、1440×900、 1680×1050、1920×1080、480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、 1080p@24/25/30/50/60Hz、 3840×2160@24/25/30Hz
• Audio formats DTS、DTS-HD、PCM、LPCM
• HDR Support
• EDID through Support
• IR Pass-back Frequency Range：20~60KHz
• Input and output TMDS signal 0.7~1.2Vp-p(TMDS)
• Input and output DDC signal 5Vp-p(TTL)
• Cat6/6A/7 Transmission Distance 1080p@60Hz transmission 70 meters
• 4K@30Hz transmission 40 meters
• Electrostatic protection of the whole machine Implementation of the standard:
• IEC61000-4-2
• 1a Contact discharge level 2（±4KV）
• 1b Air discharge level 3 (±8KV)
• Working temperature -20~60℃
• Storage temperature -30~70℃
• Humidity (no condensation) 0～90%RH
• Dimension 75.0(L) x 60.0(W) x 16.5(H) mm
• Weight TX:127g RX:127g
• Color Black
