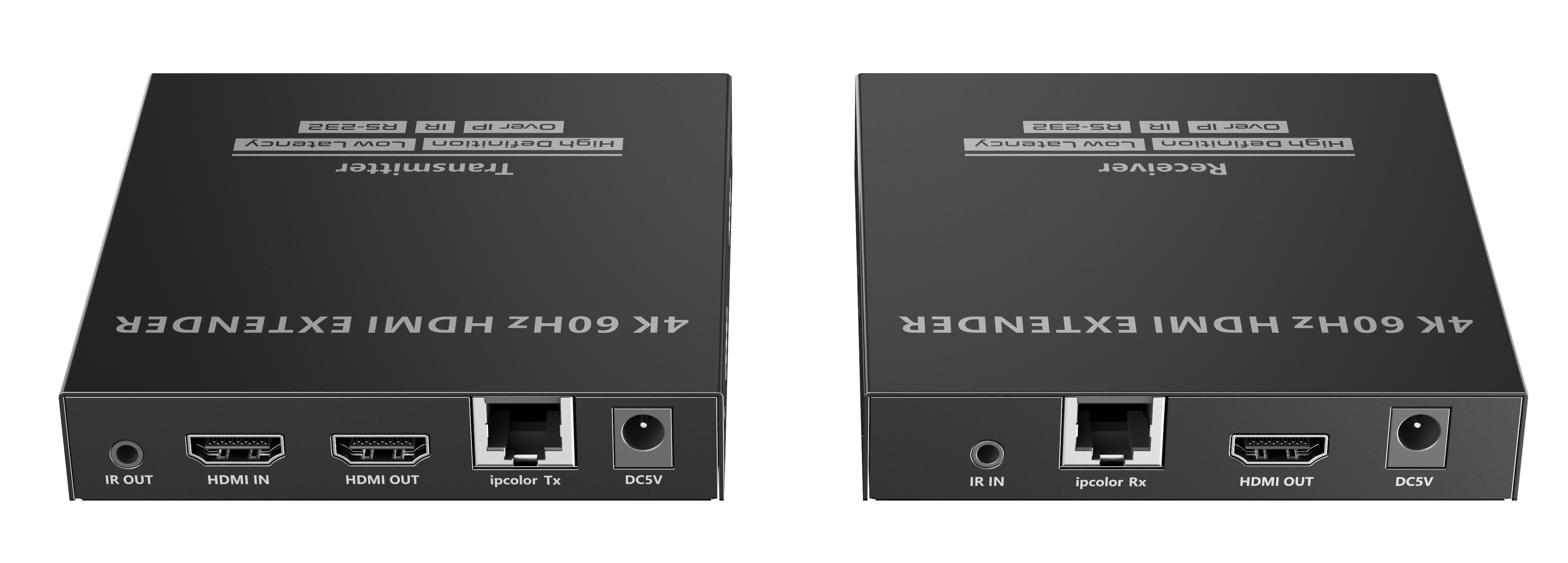

Lenkeng HDMI Extender over IP 4K60Hz 120m 1G IR Loop LKV582

This product is a 4K@60Hz HDMI extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports HDMI loop out, IR passback, and RS-232 passthrough functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.

• ipcolor STREAM
• Low Latency
• 4K@60Hz
• HDMI Loop-out
• 120M
• One to Many
• IR Pass-back
• RS-232 Control
• Micro-USB Upgrade
• Lighning Protection-Surge Protection-ESD Protection

Specifications

• HDMI length ≤ 5m
• Maximum transfer rate 18Gbps
• Compatibility HDMI 2.0
• HDCP 1.4/HDCP 2.2
• Resolutions 3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz, 2560×1600@60Hz
• Connection types One-to-one connection
• One-to-many connection
• Switch cascading
• Transmission distance Cat6/6A/7≤120m
• Transmission latency 70~180ms
• IR receiving range ≤ 5m
• IR frequency 20kHz~60kHz
• RS-232 (GND/RXD/TXD) Default baud rate: 115200
• Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• Power Supply DC 5V/1A
• Power Consumption TX ≤ 4.5W
• RX ≤ 2.5W
• Working temperature – 20℃~60℃
• Storage temperature 30℃~70℃
• Humidity 0~90%RH (no condensation）
• Housing lron
• Weight TX:254g, RX:242g
• Color Black
• Dimensions 106.0(L)*103.0(W)*20.6(H)mm
• Protection ESD protection
• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
• Lightning protection, Surge protection
