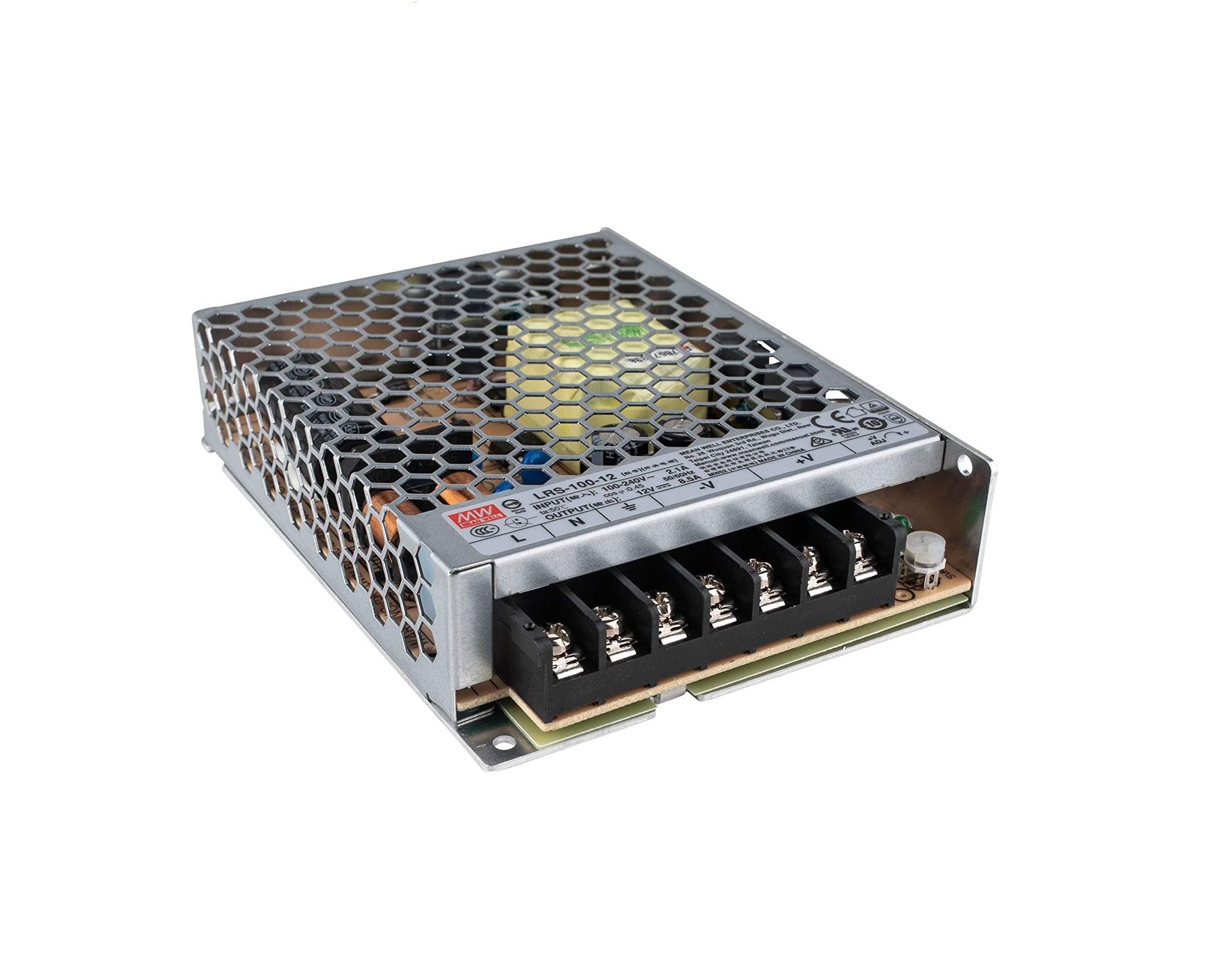

Meanwell LRS-100-12 Enclosed Power Supply 12V 100W (8.5A)

• Non-PFC, most economical models
• Ultra compact and 1U low profile
• 300VAC input surge
• No load power consumption: 0.2W~0.75W
• 5G vibration, 70℃ operation
• Operating altitude up to 5000 meters
• Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943

Specifications

• Description : AC-DC Single output enclosed power supply; Universal AC input; Output 12Vdc at 8.5A; Up to 5G vibration; 1U low profile
• Application : Household EN 60335 / IT AV EN/UL/IEC 62368-1
• Technology : AC/DC
• Power Format : Box Type – Enclosed
• Output Power : 100W
• Output Voltage : 12V
• Output Current : 8,5A
• Input Voltage : 85 – 264V / Universal Input 110/230V
• IP Rating : No IP assigned
• Width : 97mm
• Height : 30mm
• Depth :129mm
• Dimming Technology : No Dimming
