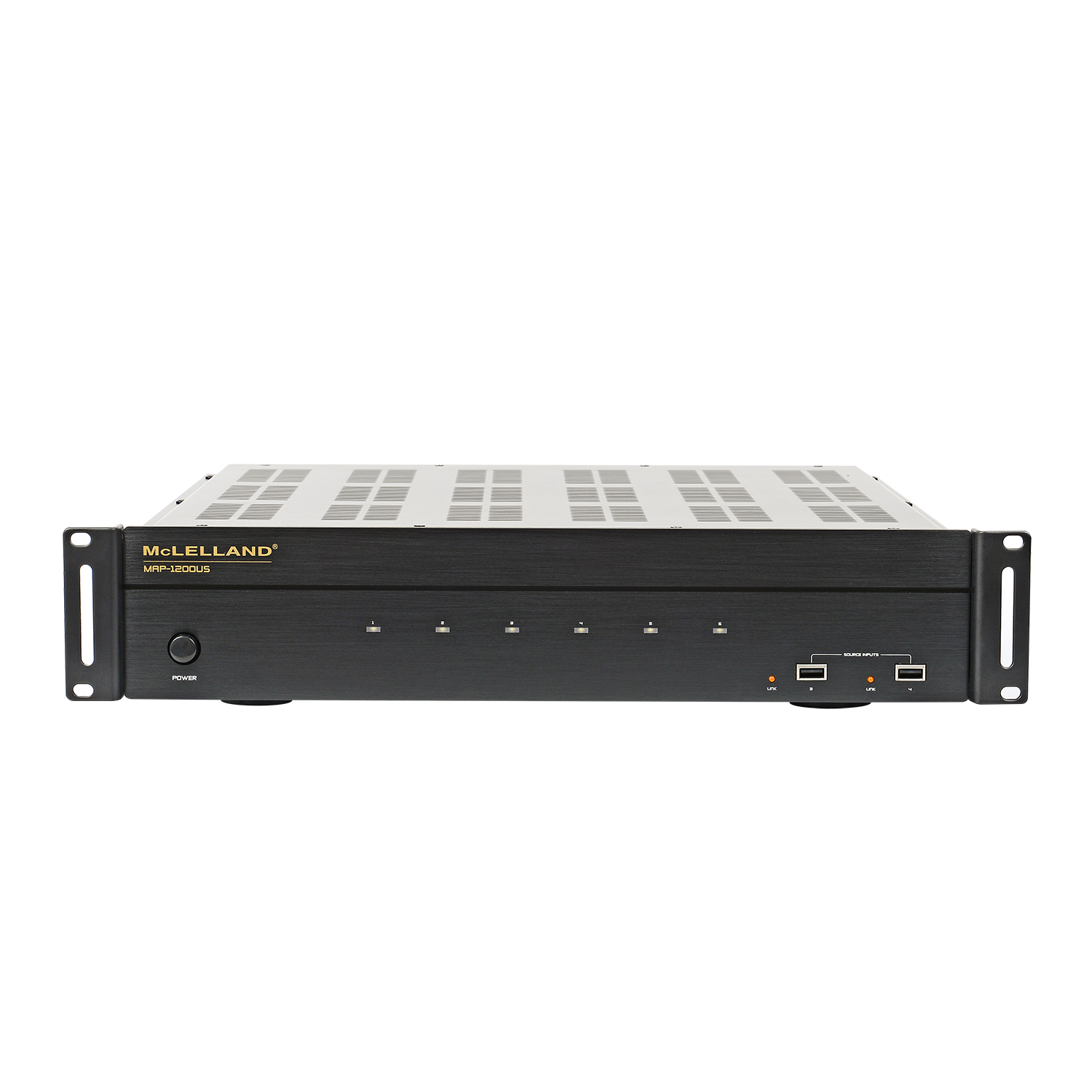

OPEN BOX McLelland MAP1200-US 6 Source / 6 Zone Multi-room Controller / Amplifier

• High efficiency more than 85% Class D amplification
• 6 Line input sources, including 2 Audio Streamers (Input 3, 4)
• USB ports for playing music files from USB Flash Drive (Input 3, 4)
• Each zone Stereo/Mono output selectable
• Enable control over Ethernet TCP/IP
• Support Control APP
• PRE-AMP output on Zone1~6
• Built-in IR receiver & IR remote controller for Source select/Volume/Treble/Bass
• 12V DC trigger output to external device when the system is power on
• 12V DC mute trigger input from the external devices
• RJ45 Ethernet port for the wired connection to the local network
• Another RJ45 Ethernet expansion port for connecting with smart TV or other device
• RS-232 port allows 2-way communication with the Home Automation system
• Expandable up to 18 Zones by additional 2 units
• 6 LEDs for 6 zones Power On, Standby and Mute
• Built in IR emitter

Specifications

• Watts @ 8 Ohms 25W x 2 per zone
• Watts @ 4 Ohms 50W x 2 per zone
• Watts bridge 8 Ohms 100W per zone
• S/N: >85dB AWTD
• THD: <0.1%
• Frequency Response: 20Hz-20KHz
• Input Impedance:>47K Ohm
• Input Sensitivity: 250mV
• Protection: Overload, Short circuit
• Output Connection: Terminal Block
• System on Voltage: DC 12V
• External mute voltage: DC 12V
• Power supply: AC115V/60Hz, 230V/50Hz
• Dimension: 43mm (W) x 89mm (H) x 416 (D)
• Weight: 12 kg
