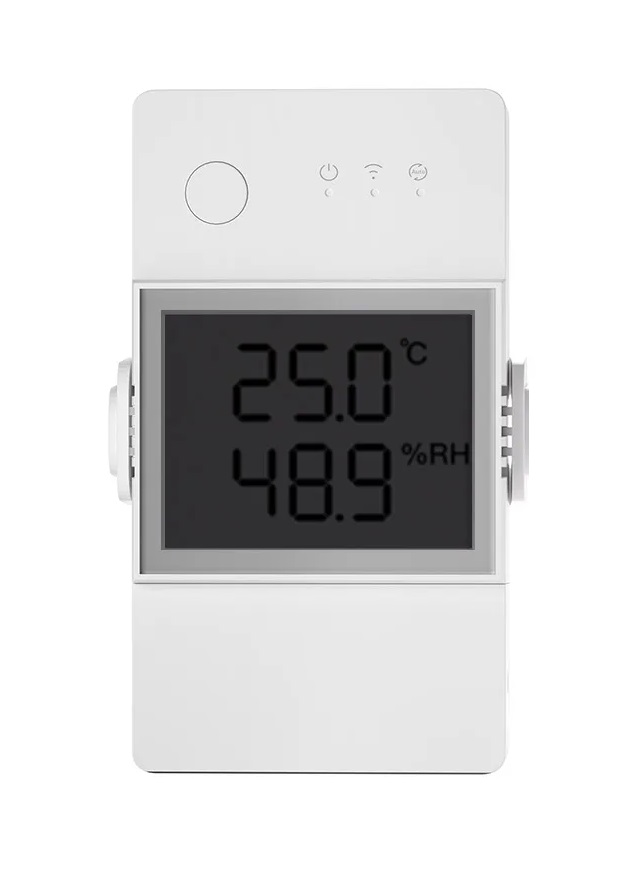

Sonoff WiFi Smart Switch TH Elite Smart Temperature and Humidity Monitoring THR320D 20A

• 20A Max & Dry Contact Output : Support to connect 20A Max high load, dry contact output
• LCD Screen : Real-time monitoring of temperature and humidity data, the screen refreshed every 5S
• 6-Month Temp & Humi Historical Data by Hours :  Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour
• Local Automatic Control : Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings
• Voice Control and Query : Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice

Note  : If you already have the 2.5mm Audio jack sensor (AM2301/DS18B20) and want to use it with the new TH ELITE, you must buy the RJ9 adapter

Specifications

• TH Elite :  20A
• Model : THR320D
• THR320D Input/Output  : 100-240V~50/60Hz 20A Max
• MCU  : ESP32
• Wi-Fi  : IEEE 802.11 b/g/n 2.4GHz
• Dry contact  : 5-30V, 1A Max
• TH Elite Working Humidity  : 5%-95%RH,non-condensing
• TH Elite Working Temperature  : -10°C~40°C (14℉~104℉)
• Supported Sensor  : THS01, DS18B20, MS01
• THS01 Working Temp  : –40℃~+85°C(-40℉~185℉)
• THS01 Humi Measuring Range  : 0~100%RH
• DS18B20 WorkigTemp  : -55℃~+125℃(-67℉~257℉)
• MS01 Humi Measuring Range  : 0~100%RH
• MS01 Operating Temp Range  : 0℃~60°C(32℉~140℉)
• RL560 Conductor Resistance  : Max.10Ω
• RL560 Insulation Resistance  : Min.5MΩ
• Certification  : TUV/CE/UKCA/WWA/FCC/RoHS/SRRC
• Security Mode  : WPA/WPA2
• Works with  : Amazon Alexa, Google Assistant
• Casing material  : PC V0
• Product Size  : 98x54x31mm
• Color  : White
