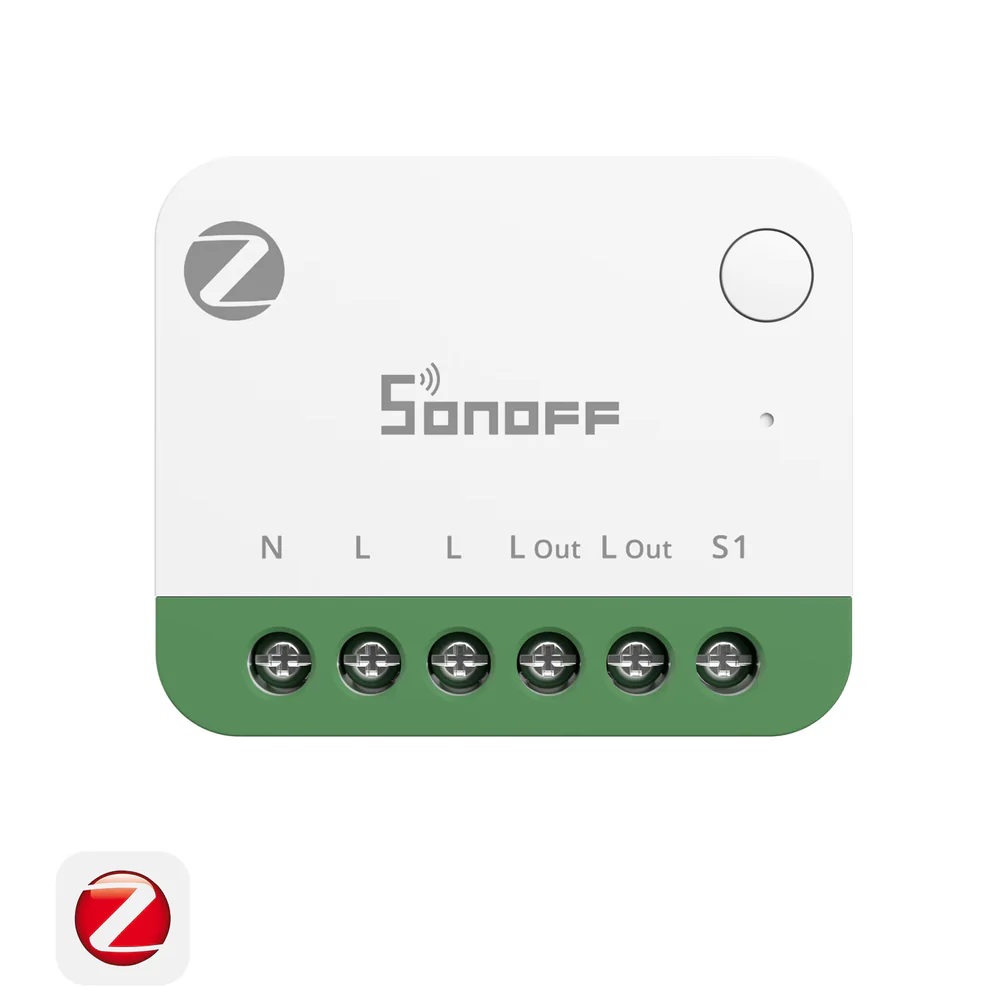

Sonoff Zigbee Smart Switch Compact MINI-ZB1GSP

• Energy Monitoring & Generation : Track both electricity consumption and renewable generation from solar systems. The app provides visual charts and exportable data for smarter energy management
• Energy Billing & Tariff Optimization : Create accurate electricity bills with customizable currency and rates. Supports time-of-use pricing, tracking costs across different periods to identify savings opportunities and optimize appliance usage
• Smart Load Detection & Alerts : Automatically detects the real operating status of up to 16A appliances like coffee makers, ovens, and kettles by monitoring power changes, and sends app notifications when tasks finish
• Advanced Protection : Provides overload, overcurrent, overvoltage, and undervoltage protection with customizable thresholds. Automatically cuts power when limits are exceeded and includes overcharge protection to extend battery life
• Zigbee 3.0 & Network Extension : Built on Zigbee 3.0 for seamless smart home integration and automation. Also works as a Zigbee router, relaying signals to extend network range and improve stability

Specifications

• Product Model : MINI-ZB1GSP
• Rating : 16A 110-240V~ 50/60Hz Max Resistive load μ
• Zigbee : IEEE 802.15.4
• Net Weight : 27.3g
• Dimensions : 39.5 × 33 × 16.8mm
• Color : White+Green
• Housing Material : PC
• Recommended Wire Gauge : 18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
• Installation Location : Indoor concealed installation
• Operating Temperature : -10℃ ~ 40℃
• Operating Humidity : 10%~90% RH, non-condensing
• Certifications : CE / RoHS / FCC
