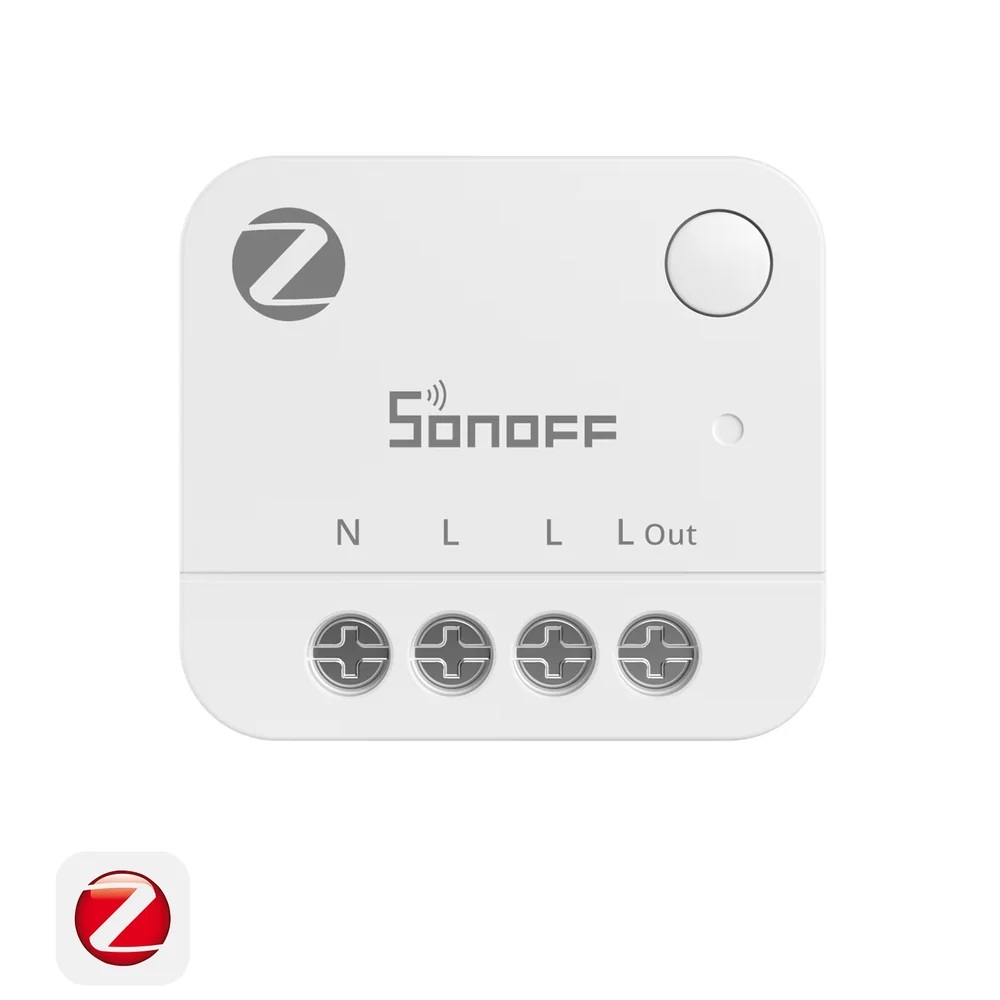

Sonoff Zigbee Smart Switch With Power Meter MINI-ZB1GP
€33.00
Real-Time Energy Tracking : Monitor real-time power consumption or renewable energy generation from solar systems. Access detailed charts, historical records, and exportable data directly in the app Smart Cost Calcu…
Delivery: 2-7 working days
- Real-Time Energy Tracking : Monitor real-time power consumption or renewable energy generation from solar systems. Access detailed charts, historical records, and exportable data directly in the app
- Smart Cost Calculation : Support fixed electricity rates and time-of-use tariffs to generate accurate energy cost reports. Gain clear insights into energy expenses across different pricing periods, helping you manage electricity costs more effectively
- Intelligent Appliance Monitoring : Recognizes the operating status of connected appliances up to 16A and sends instant notifications when tasks are completed, helping you stay informed without constant checking
- Comprehensive Safety Protection : Safeguard connected devices with customizable overload, overcurrent, overvoltage, and undervoltage protection. Receive instant notifications via the eWeLink app when preset thresholds are exceeded
- Reliable Zigbee Connectivity : Featuring Zigbee 3.0 technology for stable communication and seamless automation. Functions as a Zigbee repeater to strengthen signal coverage and enhance network performance
Specifications
- Product Model : MINI-ZB1GP
- Rating : 100-240V~ 50/60Hz 16A
- Zigbee : IEEE 802.15.4
- Net Weight : 14g
- Dimensions : 32x29x15.9mm
- Color : White
- Housing Material : PC
- Recommended Wire Gauge : Value
- Heading : 18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
- Installation Location : Indoor concealed installation
- Operating Temperature : -10℃~ 40℃
- Operating Humidity : 10%~90% RH / non-condensing
- Voltage Measurement Range : 100-240V
- Current Measurement Range : 0-16A
- Power Measurement Range : 0-3840W
- Maintenance : Temperature: MINI-ZB1GP operating temperature is -10°C~40°C. Exceeding this temperature range will cause damage to the meter. Please note that it can influence the meter's life negatively if the meter operates in extremely high or extremely low temperatures. MINI-ZB1GP storage temperature range is -30~70°C.
- Certifications : CE / RoHS / FCC
Additional information
| Brand | Sonoff |
|---|---|
| Type | Smart Switch |
| Current | 100-240V 50/60Hz 16A |
| Energy Monitor | Yes |
| MPN | MINI-ZB1GP |
