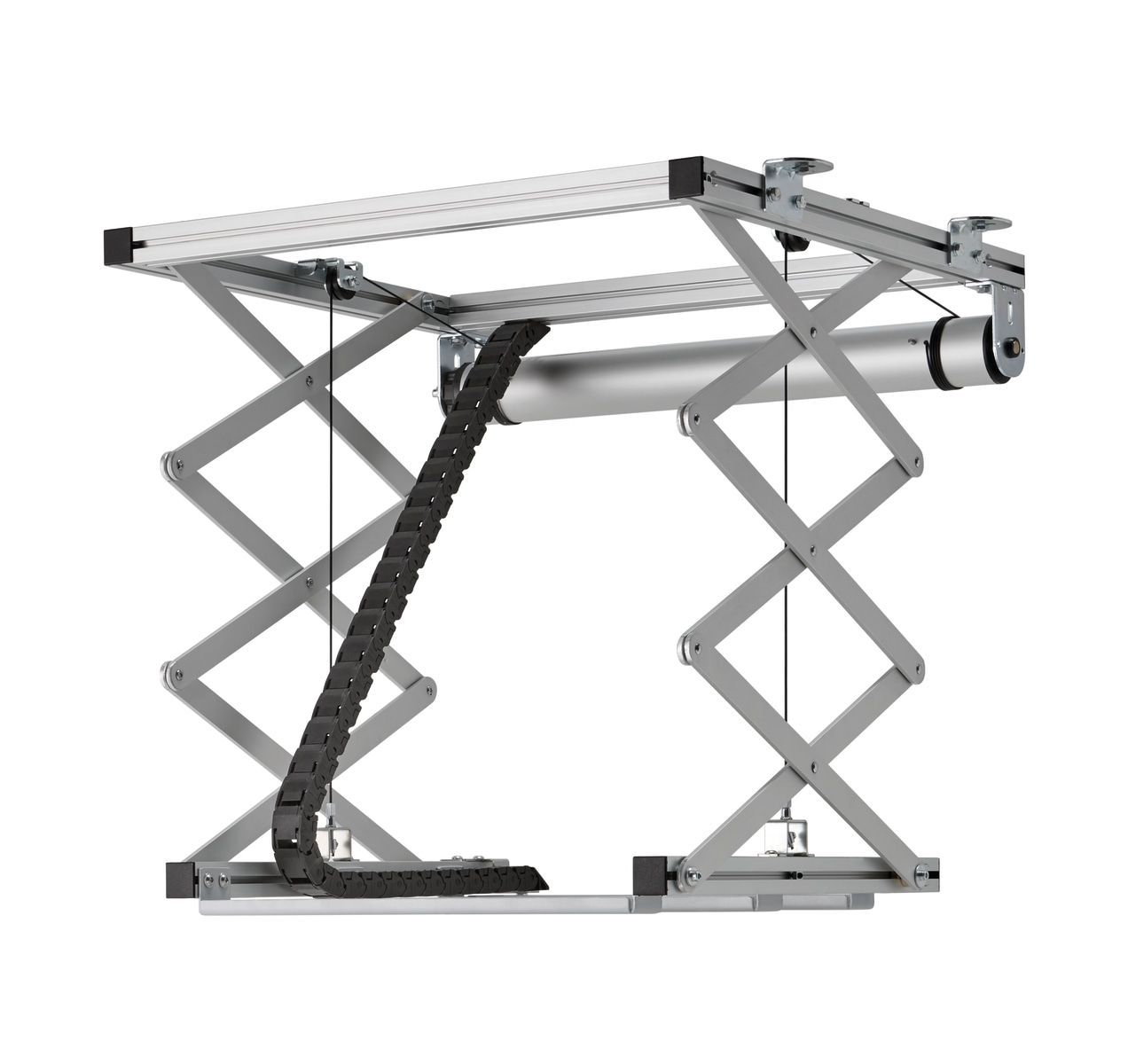

Vogels PPL2100 Projectr Ceiling Lift System 81.5cm

• The PPL 2100 projector lift system is the perfect solution for the integration of a large and heavy projector into a ceiling where an aesthetical solution is required. Not only is the projector neatly hidden, it is also theft delaying. The lifts runs silently and offers two adjustable positions: top and show
• This lift has been developed to be installed inside a false ceiling where very few space is available. Inside the false ceiling only a minimum height of 15,5 cm is required to install lift and projector. The motor allows a drop of 81,5 cm
• The maximum weight capacity of the projector lift is 30 kg
• The PPL 2100 is supplied with extendable side brackets in order to position the ceiling tile exactly in the ceiling tile grid. The lift is equipped with two safety screws that prevent the lift to extent further to the preset end stop
• This lift is also available as a 120 V, 60 Hz version

Specifications

SPECIFICATIONS:

• Power supply 220-230 V, 50 Hz
• Maximum consumption 184 W
• Dimensions lift closed 575 x 155 x 554 mm (WxHxD)
• Dimensions lift opened 575 x 970 x 554 mm (WxHxD)
• Maximum projector dimensions 570 x 600 mm (WxD)
• Maximum size fixing points of the projector 380 x 400 mm (WxD)
• Maximum weight 30 kg
• Cable management system
• Universal projector adapter Included
• Up/down wall switch

Optional Accessories

• PPA901 Ceiling TIle Holder
• PPA904 Low Voltage Contact Box
• PPA902 Wireless Remote Control
