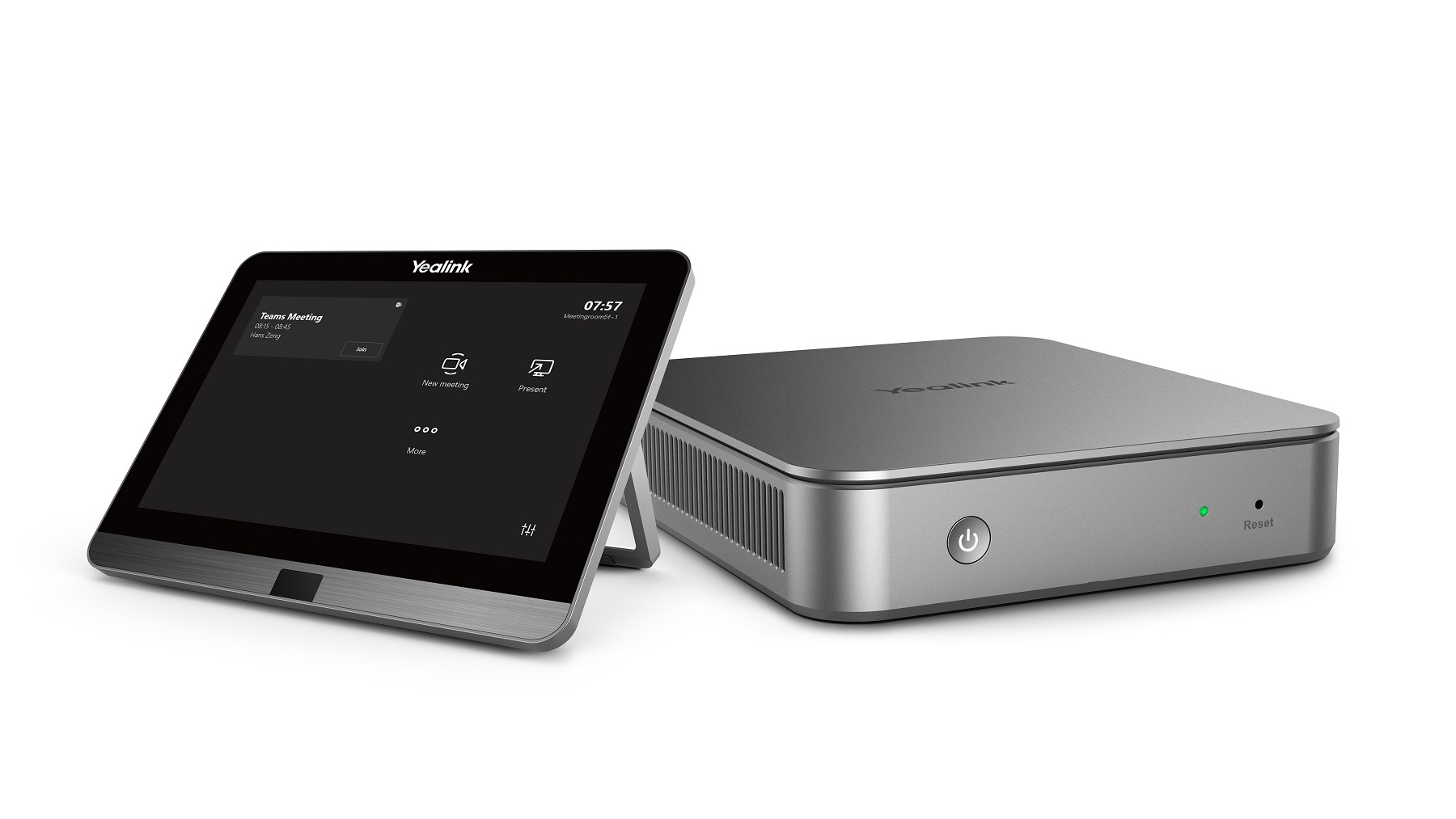

Yealink MS Teams Room System Windows Mcore MiniPC & Mtouch II Touch Console MCoreKIT-MS

The Yealink MCore Kit includes the high-end MS Teams preloaded Yealink Mini-PC that facilitates features such as video output, Bluetooth and WiFi amongs many other features. It also includes the Yealink MTouch II touch console so that users can control their meetings with the best tool in the market. This 8-inch display with human motion sensing technology supports both wired and wireless content sharing.

MCore Mini-PC

• 8th-gen Intel ® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1x Yealink VCH port,connect to MTouch II
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Built-in cable management

MTouch II touch panel

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C video input

Mini-PC Preloaded with

• Windows 10 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yealink RoomConnect
