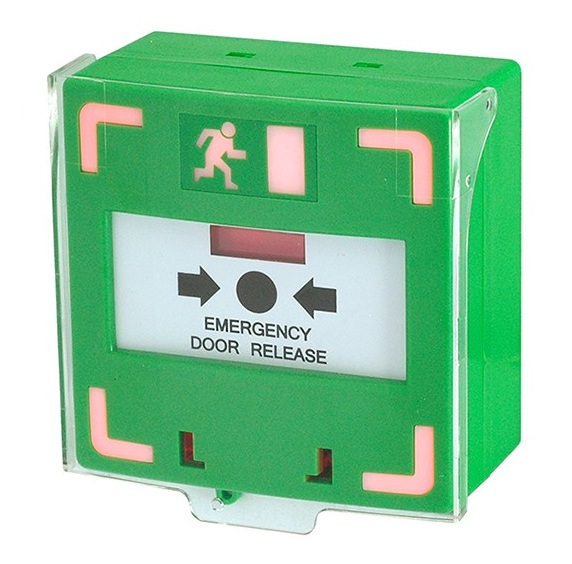

Zudsec Button Emergency Door Release ZDF-101R

• Fireproof material
• With Buzzer & Indicator function
• Buzzer : Set as silent, interval buzzing, or continuous buzzing
• Indicator : Dual-color (red and green), Red indicator to set blinking, off or on.
• Contact Output :  NO/NC/COM,(Maximum load of 125V/3A)
• Power Supply : DC12V~DC 24V ±5%
• Suitable for Exit door, Emergency door, Escape vent

Specifications

• Standard Structure : Fireproof Material , Easy to install
• Material : ABS, PC ( transparent slip case)
• Surface : Surface Mount
• Operation current : DC 12V / 10mA (Standby) / 50mA (Operation) (±5%)
• DC : 24V / 11mA (Standby) / 64mA (Operation) (±5%)
• Output : N.O / N.C / COM / Output : Maximum load of 125V/3A
• Power Supply : DC12 – DC24V (±5%)
• Buzzer : Set as silent / interval wailing / continuous wailing
• Indicator : Dual-color (red   and green) / Red indicator to set blinking, off or on
• Dimensions : 90Lx93Wx45H(mm)
• Weight : 208g
