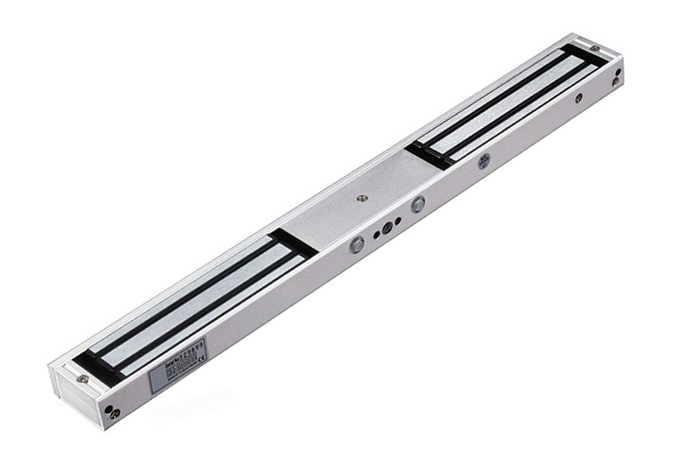

Zudsec Lock Electromagnetic Double Door ZDL-350DST

NC lock = Normally Closed

No power →  unlocked

Power ON →  locks

NC = Needs power to stay closed

• Input voltage：DC12V
• Instant release
• No residual magnetism
• High Strength Material, Anodized Aluminum Housing
• Design without Mechanical Failure.
• Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
• Holding Force: 300Lbsx2

Specifications

• Voltage :12V
• Power consumption : 12V/320mA
• Delay time : 0~9 seconds
• Surface Temp : ≤+20°C
• Operating Temp : 10~+55°C(14-131F)
• Suitable Humidity :0~90%
• ZDL-350D : Dimension : 480×56×29mm(Body);160×44×11mm(Magnet);
• Packing size : 52*6.5*7cm
• Weight : 3.95Kgs
