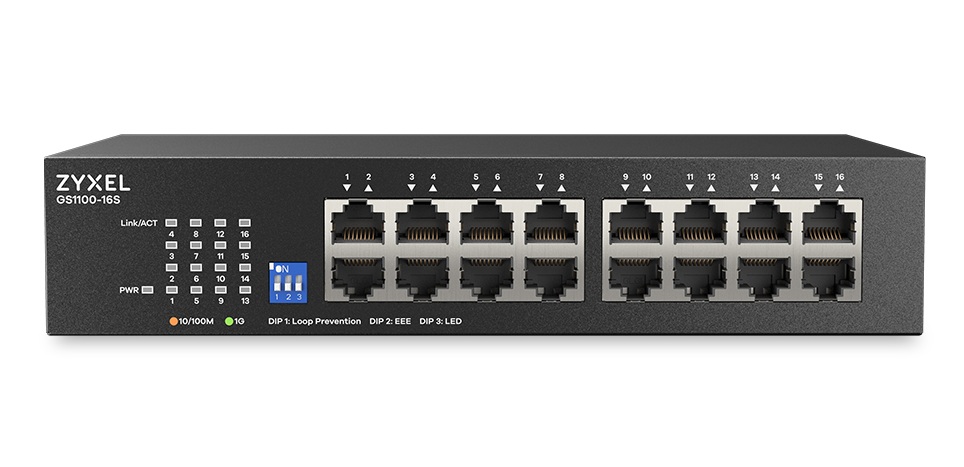

Zyxel Switch Gigabit Ethernet 16-Port R/M UK Plug GS1100-16S

Expand your wired network capacity seamlessly and reliably with the Zyxel GS1100-16S. This 16-port Gigabit unmanaged switch is designed to deliver immediate, wire-speed network connectivity for office environments, small businesses, and home setups requiring high throughput without the hassle of configuration. Built with a robust metal housing that easily fits into standard IT racks, it ensures maximum durability and optimal heat dissipation. Thanks to its fanless architecture, the GS1100-16S guarantees completely silent operation, making it perfect for shared, noise-sensitive workspaces. With built-in energy-efficient Ethernet technologies and a practical front-panel DIP selector, you gain instant control over your network's power consumption and basic operational modes without needing a software interface.

• True Plug-and-Play Simplicity: Instantly expand your Gigabit network with zero software configuration required—just plug in your Ethernet cables and power up.
• Non-Blocking Gigabit Performance: Experience rapid file transfers and media streaming with a full 32 Gbps switching capacity and 16 high-speed Gigabit ports.
• Whisper-Quiet Operation: The smart, passive cooling fanless design ensures 0 dBA acoustic noise, blending perfectly into quiet office environments.
• Energy-Efficient Networking: Compliant with the IEEE 802.3az standard, the switch dynamically adjusts power output based on cable length and network traffic, helping reduce operational overhead.
• Built for the Rack: Measuring at a standard 1U height (44 mm) with a durable metal chassis, it is perfectly suited for desktop placement or direct integration into a server cabinet.

Specifications

• Product Classification: 16-port GbE Unmanaged Switch
• Total Port Count: 16 x 10/100/1000 Mbps (RJ-45)
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.8 Mpps
• Packet Buffer: 1 MB
• MAC Address Table: 16K entries
• Jumbo Frame Support: 12 KB
• Flash / RAM Memory: 2 MB / 256 KB
• Power Input: 100 to 240 V AC, 50/60 Hz (Internal power supply)
• Minimum Power Consumption: 2.36 Watts (without connections)
• Maximum Power Consumption: 8.33 Watts (under full load)
• Physical Dimensions (W x D x H): 215.5 x 133 x 44 mm
• Weight: 0.81 kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating and Storage Humidity: 10% to 95% (non-condensing)
• Mean Time Between Failures (MTBF): 6,476,619 hours (at 25°C)
• Acoustic Noise Level: 0 dBA (Fanless design)
• Surge Protection: Power supply (Line-to-GND: 2 KV, Line-to-Line: 1 KV)
• ESD Protection: 8 KV (air discharge) / 4 KV (contact discharge)
