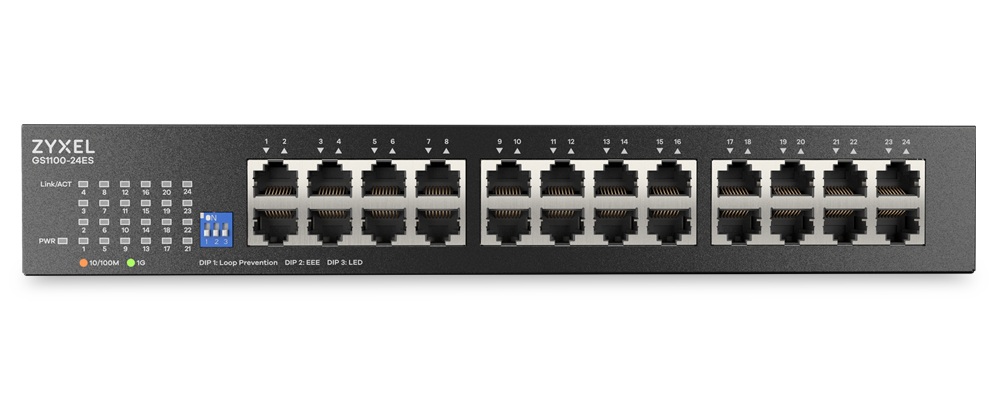

Zyxel Switch Gigabit Ethernet 24-Port R/M UK Plug GS1100-24ES

Expand your business network capacity with the Zyxel GS1100-24ES. This robust 24-port Gigabit unmanaged switch delivers high-density, wire-speed connectivity in a compact, fanless design. Ideal for growing small-to-medium businesses and quiet office environments, it ensures maximum data throughput without the distraction of background noise. The GS1100-24ES sets itself apart with its practical front-panel DIP selector, giving you instant, hardware-level control over essential network features such as Energy Efficient Ethernet, loop protection, and flow control—all without needing a complex software management interface. With true plug-and-play simplicity and a rack-mountable or desktop-friendly metal chassis, upgrading your local network is fast, secure, and effortless.

• True Plug-and-Play Simplicity: Unmanaged, auto-negotiating architecture provides instant Gigabit connectivity across 24 ports with zero software configuration needed.
• Hardware DIP Selector: Convenient front-panel physical switches allow you to instantly enable or disable Energy Efficient Ethernet (EEE), IEEE 802.3x flow control, and loop protection.
• Completely Silent Operation: The smart fanless design guarantees 0 dBA acoustic noise, making it the perfect network backbone for noise-sensitive shared workspaces.
• Non-Blocking Gigabit Performance: Experience rapid file transfers and network responsiveness with a full 48 Gbps switching capacity and a 35.7 Mpps forwarding rate.
• Enhanced Network Reliability: Built-in loop protection helps identify and prevent broadcast storms, while a dedicated 1 MB packet buffer smoothly handles bursts of heavy network activity.

Specifications

• Product Classification: 24-port GbE Unmanaged Switch
• Total Port Count: 24 x 10/100/1000 Mbps (RJ-45)
• Switching Capacity: 48 Gbps
• Forwarding Rate: 35.7 Mpps
• Packet Buffer: 1 MB
• MAC Address Table: 16K entries
• Jumbo Frame Support: 12 KB
• Power Input: 100 to 240 V AC, 50/60 Hz (via internal power supply)
• Maximum Power Consumption: 12.21 Watts (under full load)
• Physical Dimensions (W x D x H): 280 x 126 x 44 mm
• Weight: 1.02 kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating and Storage Humidity: 10% to 95% (non-condensing)
• Mean Time Between Failures (MTBF): 1,131,995 hours
• Acoustic Noise Level: 0 dBA (Fanless design)
• Surge Protection: Power supply (Line-to-GND: 2 KV, Line-to-Line: 1 KV)
• ESD Protection: 8 KV (air discharge) / 4 KV (contact discharge)
