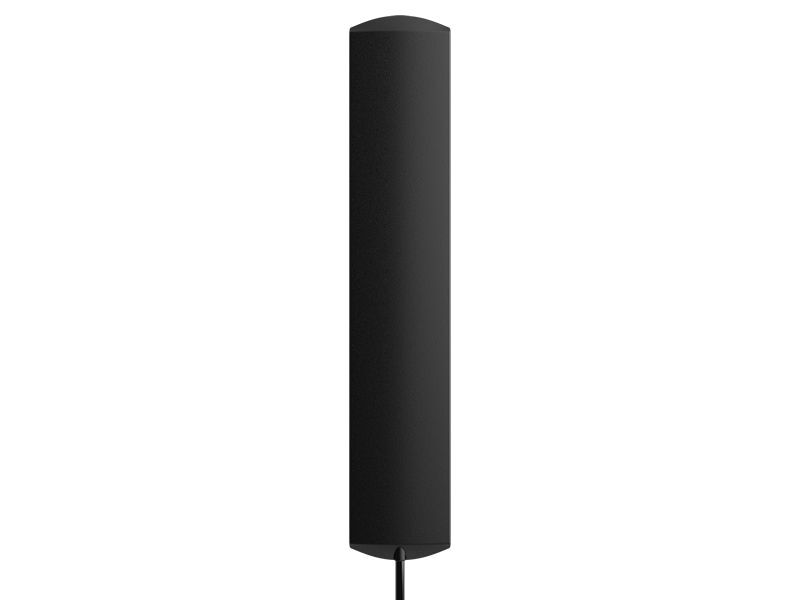

AJAX BASELINE Alarm Hub BP External Antenna

Compatibility : Hub BP Jeweller

Key features

• Communication channels : 2G/3G/LTE / Jeweller / Wings

Operating frequencies

• 698–960 MHz
• 1,710–2,690 MHz

Connector : SMA

Sabotage protection

• External antenna breakage detection : An Ajax system is able to detect a breakage of an external antenna and notify users and the monitoring company.

Installation

• The antenna is connected to the hub’s communication channels and goes outside through holes in the hub’s casing.
• The antenna is attached to the surface using a pre-applied double-sided adhesive tape.
• Dimensions : 115.6 × 21.7 × 5.8 mm
• Cable length : 3,000 mm
• Weight : 41 g
• Operating temperature range : from  –40 °C to +85 °C
• Operating humidity : up to 95%
