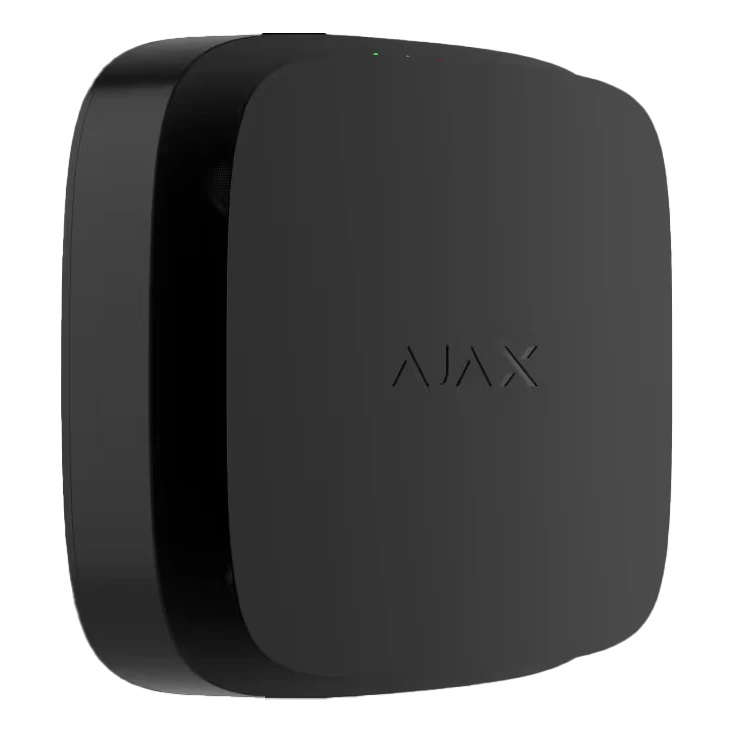

Ajax EN54 FireProtect Smoke black

Ajax EN54 FireProtect Smoke black

€118.00

EN54 FireProtect (Smoke) Jeweller is a wireless addressable point smoke detector. The device complies with EN 54 requirements and ensures smoke detection if signs of smoke are present. EN54 FireProtect (Smoke) Jeweller o…

Delivery: 2-7 working days

Add to wishlist
SKU: MST-29481 Categories:Fire Alarm, Security, Wireless Fire System Brand: Ajax
  • Description
  • Additional information
  • EN54 FireProtect (Smoke) Jeweller is a wireless addressable point smoke detector. The device complies with EN 54 requirements and ensures smoke detection if signs of smoke are present.
  • EN54 FireProtect (Smoke) Jeweller operates as part of an Ajax system and communicates with control and indicating equipment (CIE) via secure Jeweller radio protocol. The communication range with the CIE is up to 1,700 m in an open space.

Specifications

Communication

  •  Jeweller communication technology
  • Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.
  • Frequency bands : 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz
  • Maximum effective radiated power (ERP) : up to 20 mW / Automatic power control to reduce power consumption and radio interference.
  • Radio signal modulation : GFSK
  • Radio communication range : up to 1,700 m / Between the device and control and indicating equipment (CIE) or a range extender in an open space.
  • Encrypted communication : All stored and transmitted data is protected by block encryption featuring a dynamic key.
  • Frequency hopping : To prevent radio interference and jamming.

Smoke detection

  • Sensitive element : dual-spectrum optical sensor / Detects smoke based on the size of particles in the air.
  • False alarm protection : The device does not respond to water vapor.
  • Patented smoke chamber : Protects the smoke sensor from dust, dirt, and insects.

Alarm annunciation

  • Alarm type : acoustic
  • Sound volume : up to 95 dB at a distance of 1 m / Adjusted by a PRO or user with admin rights in an Ajax app.
  • Sound pattern : 32 tones
  • Sound synchronization : An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE.
  • Alarm annunciation test : An audible alarm check to ensure the fire alarm is clearly audible on the premises.

Installation recommendations : The device is designed for indoor use only. / The SmartBracket mounting panel allows the detector to be rotated up to 90° even after installation.

Sabotage protection

  • Tamper button / Fault notification when an attempt is made to remove the device from the mounting panel.
  • Lock for SmartBracket : to secure the device on the SmartBracket mounting panel / When locked, the lock secures the device and prevents it from being removed without a special tool.
  • Protection against spoofing : device authentication
  • Connection loss detection : after 36 s / Detection time depends on Jeweller settings.

Power supply

  • Battery : 2 × CR123A / Pre-installed.
  • Tool-free battery replacement : To replace the batteries, open the lids of the battery compartments.
  • Reverse polarity protection : Prevents device damage if the batteries are put in incorrectly.
  • Recommended battery type : Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂
  • Calculated battery life : up to 5 years

Enclosure

  • Dimensions : 124 × 124 × 48 mm
  • Weight : 295 g
  • Operating temperature range : from 0 °C to +50 °C
  • Operating humidity : up to 80%
  • Protection class : IP21C
  • Flammability rating : UL 94 V-0
  • Color : Black

Complete set

  • EN54 FireProtect (Smoke) Jeweller
  • SmartBracket mounting panel
  • 2 × CR123A battery (pre-installed)
  • Installation kit
  • Quick start guide
  • Revision : 1

Additional information

Brand

Ajax

MPN

119922.275.BL1
