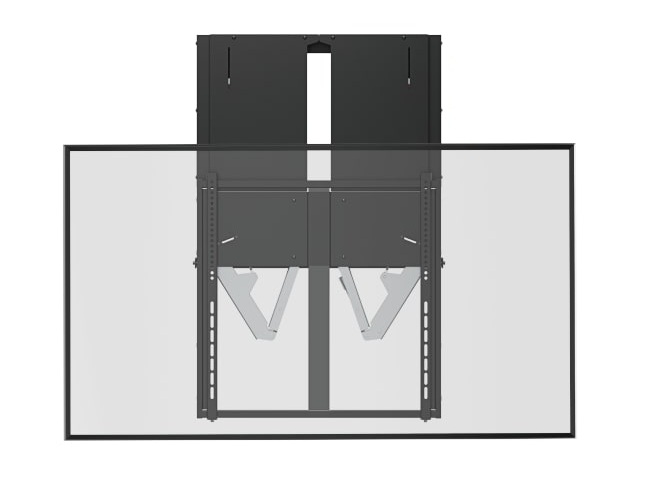

Brateck IFP Wall Mount Manual Vertical Motion 80×60 90kg HAW400E-90

Incorporating an innovative weight balance design and heavy-duty construction, the HAW400E-90 allows users to up and down the displays with only a touch, supporting the displays with a weight of 60~90kg (132lbs~198lbs). It is easy to install for a better user experience. Perfect for schools, conference rooms, healthcare facilities, trade shows, and more.

Specifications

• Product Category: Interactive Whiteboard Wall Mount
• Rank: Premium
• Material: Aluminum,Steel,Plastic
• Metal Sheet Thickness: Bracket Arm THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.098" pickling sheet,Wall Plate THK=0.12" pickling sheet)
• Pipe Size: 30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
• Surface Finish: Powder Coating
• Color: Matte Black
• Dimensions: 107x840x696mm (4.2"x33.1"x27.4")
• Fit Screen Size: 75"-90"
• Fit Curved TV: No
• Mounting Hole Pattern: VESA & Universal
• VESA Compatible: 200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,350×350,400×400,600×300,400×600,600×400,700×400,800×400,600×600,800×500,800×600
• Max. Mounting Hole: 800×600
• Weight Capacity: 60~90kg (132~198lbs)
• Strength Tested: 4 Times Approved
• Profile: 107mm (4.2")
• Screen Freely Tilting: No
• TV Height Range: 400mm (15.7")
• Installation: Solid Wall,Double Stud(406mm/450mm)
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• AV Component Shelf: No
• Direction Indicator: Yes
• Cable Management: No
• Anti-theft: No
• Bubble Level: Hook-on Bubble Level(Included in Components Package)
• Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
