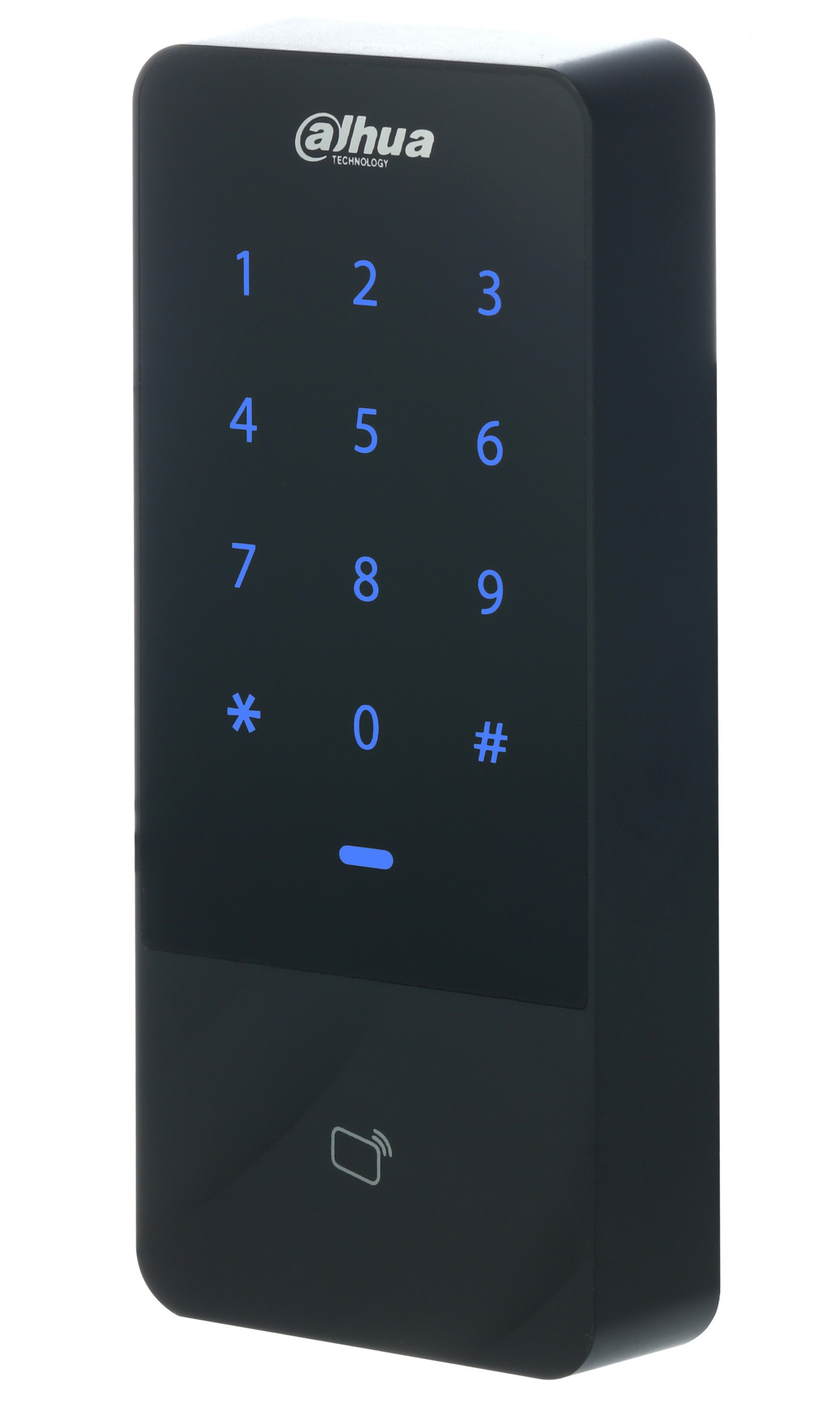

Dahua AC Standalone With Touch Keypad IP66 ASI1201E-V1

• Dahua IC Card Access Standalone
• Made from PC materials and composite panels
• Supports 30,000 users, 30,000 passwords, 30,000 cards, and 60,000 records
• Offers multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods
• Provides touch keypad with backlighting
• Contactless card reading for IC cards
• Supports RS-485 communication and Wiegand communication
• Buzzer and indicator light
• Tamper alarm
• Controller mode and card reader mode
• Offers multiple types of alarms such as duress, intrusion, unlock timeout, and excessive use of illegal card
• Cards can be issued to many types of users such as normal, VIP, patrol, guest, and blocklist users
• Supplies power to 1 lock (12 V, 1 A or lower) or 1 card reader (12 V, 200 mA or lower)
• Online update
• TCP/IP connection and auto registration
• IP66 rated
• Ideal for use outdoors
• Surface mount
• Compatible with the platforms of SmartPSS Lite and DSS Pro

Specifications

System

• Main Processor : Embedded Processor
• Button Type : Touch button
• Network Protocol : TCP/IP
• OSDP Protocol : Yes

Basic

• Product Type : Standalone
• Buzzer : Yes
• Backlight : Yes
• Casing Material : PC

Function

• Verification Method : Card;Password;Remote
• Period List : 128 groups
• Holiday Period : 128 groups
• Network Update : Yes
• First User Unlock : Yes
• Remote Verification : Yes
• Peripheral Card Reader : Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader
• Issuing Card by Master Card : Yes
• Multi-user Authentication : Yes
• Auto Registration : Yes

RFID

• Card Type : IC card
•

Performance

• Card Reading Distance : 0 mm–60 mm

User

• User (Card) Type : Normal user

Capacity

• User Capacity : 30,000
• Card Capacity : 30000
• Password Capacity : 30,500 (Includes 30,000 user passwords and 500 public passwords)
• Record Capacity : 60000

Port

• RS-485 : 1
• Wiegand : 1 (Wiegand input is 26, 34 or 66 bits self-adaptive; Wiegand output is 34 bits by default.)
• Network Port : 1-channel 10/100 Mbps Ethernet port
• Exit Button : 1 channel
• Door Status Detection : 1 channel
• Lock Control : 1 channel
• Power Output Port : 1 channel

Alarm

• Anti-pass Back : Yes
• Tamper Alarm : Yes
• Duress Alarm : Yes
• Door Sensor Timeout : Yes
• Intrusion : Yes
• Illegal Card Exceeding Threshold : Yes

General

• Power Supply : DC 12 V 1 A (The access standalone does not supply power to the lock.) / DC 12 V 2 A (The access standalone supplies power to the lock. The current of the lock can only reach up to 1 A. If it exceeds, the current will be distributed based on the actual amount of current.)
• Protection : IP66
• Power Consumption : ≤12 W (When the access standalone does not supply power to the lock, the power is ≤12W. When it does supply power to the lock, it is calculated based on the actual amount of power of the lock.)
• Product Dimensions : 142 mm × 62 mm × 23 mm (H× W × D)
• Packaging Dimensions : 195 mm × 135 mm × 56 mm (H × W × D)
• Operating Temperature : –30 °C to +60 °C
• Operating Humidity : 0%–90% (RH), non-condensing
• Operating Altitude : 0 m–1,300 m
• Operating Environment : Outdoor
• Gross Weight : 244 g
• Installation : Surface Mount
