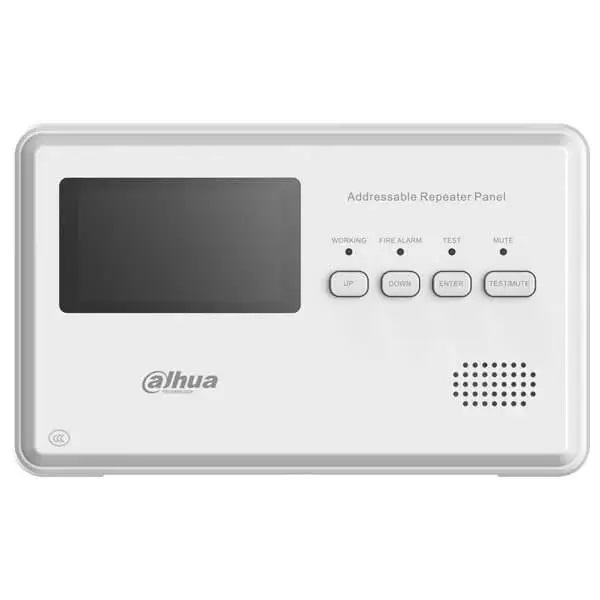

Dahua Addressable Fire Alarm Repeater Panel HY-1330-CTXF

• Convenient wiring: Two-wire, polarity-free
• Reliable communication: Built-in microprocessor, performance is stable
• Ultra-low power consumption: Ultra-low monitoring current and alarm current

Specifications

Electrical

• Working Voltage : DC24V
• Current : Monitoring current: ≤ 2mA / Maximum operating current: ≤ 10mA
• Indicator : Working: Green indicator flashes every 6 s during polling, flashes quickly during malfunctioned / Alarm: Red indicator remains lit during alarm / Self-test: Yellow indicator remains lit during self-testMute: Yellow indicator remains lit when Test/Mute Button is pressed
• Display Capacity : 999 pieces of alarm information
• Display : 64×128 LCD screen

Communication

• Wiring : Two-wire, polarity-free
• Addressing Method : Electrical encoder
• Address Range : 1–254
• Communication Distance : 1500 m (4921.26 ft)
• Alarm Sound Pressure : 65dB–115dB (A) @ 1m
• Environment
• Operating Temperature : –10°C to +40°C (+14°F to +104°F)
• Storage Temperature : –20°C to +65°C (–4°F to +149°F)
• Operating Humidity : ≤ 95% RH (no condensation)

Construction

• Color : White
• Dimensions (with base) : 180.0 mm × 110.0 mm × 32.0 mm (7.09" × 4.33" × 1.26")
• Weight (with base) : 270 g (0.60 lb)
• Compliance Standard : EN54-2
