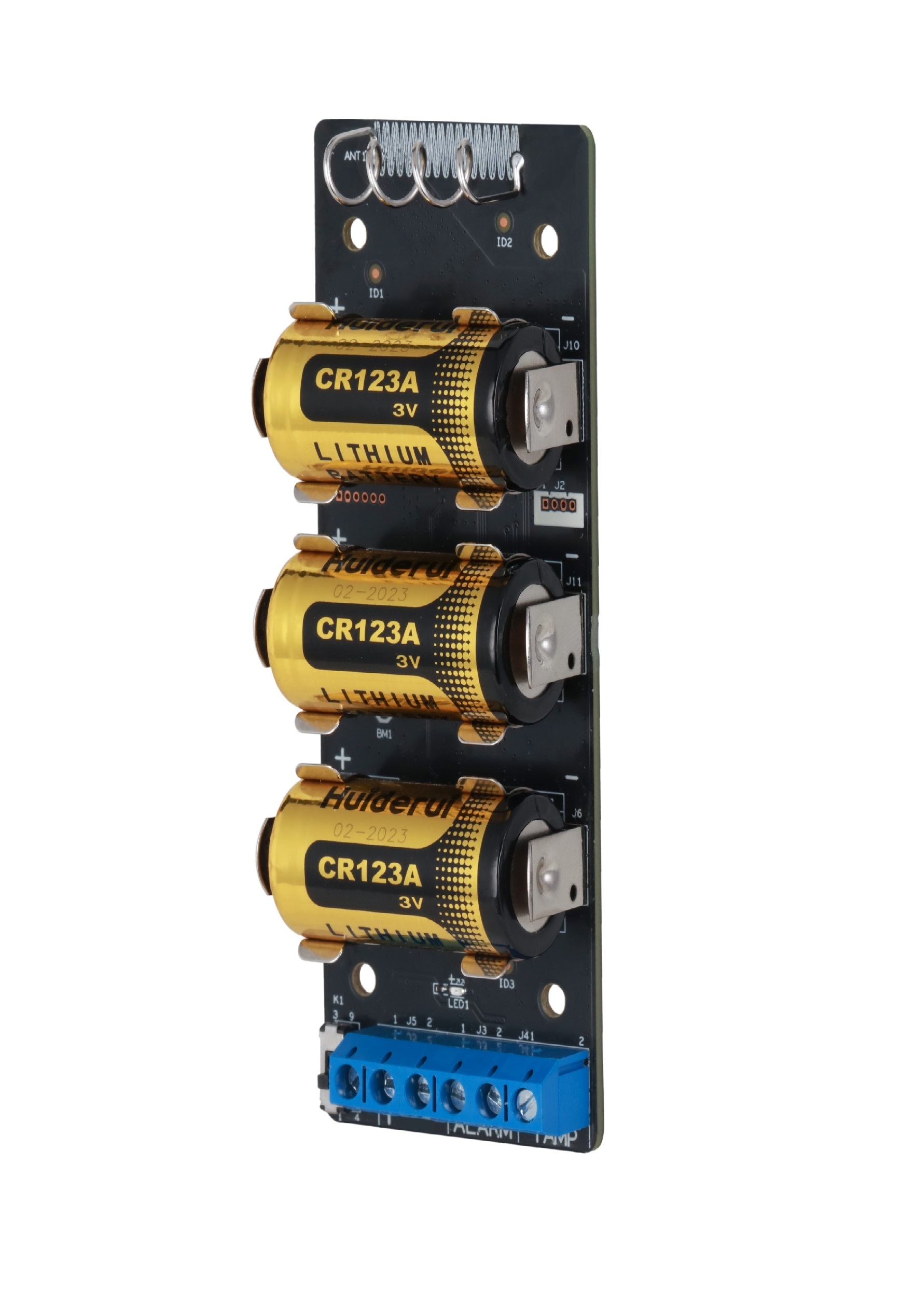

Dahua Alarm Automation Input Expander ARM320-W2(868)

• Six types of alarms: Intrusion, medical, fire, emergency, gas, and tamper.
• Connects to external power supplies.
• Triggers alarms when the device is moved.
• Alarms go off when the device overheats.
• Cloud update.
• The two-way wireless encrypted communication mechanism improves the security and stability of communication.
• With the wireless frequency hopping mechanism, the device automatically hops to other available frequency bands when the original frequency band is being interfered with by other wireless radios, to ensure communication remains smooth

Specifications

Port

• Alarm Input : 2 (1 for alarm and 1 for anti-tampering)
• Auxiliary Power Output : 3.3 V, up to 10 mA

Function

• Button : 1 × power button
• Remote Update : Cloud update
• Low Battery Detection : Yes
• Tamper : Yes
• Measuring Range (Temperature) : –10 °C to +55 °C (indoor)

Technical

• Sensor : Triaxial accelerometer
• LED Indicator : 1 × green alarm indicator
• Scenario : Indoor
• Operating Current : 45 uA (with 1 min heartbeat, normally open mode, charge not being provided for other devices and device moved alarm not enabled)
• Alarm Current : 50 mA

Wireless

• Carrier Frequency : 868.0 MHz–868.6 MHz
• Communication Mechanism : Two-way
• Communication Distance : Up to 1600 m  in an open space
• Encryption Mode : AES128
• Frequency Hopping : Yes

General

• Power Supply : 3 × CR123A battery
• Battery Model : CR123A
• Battery Life : 5 years (4 years if the external input type is pulse)
• Power Consumption : Max. 150 mW (without providing charge for other devices)
• Operating Temperature : –10 °C to +55 °C  (indoor)
• Operating Humidity : 10%–90% (RH)
• Product Dimensions : 102 mm × 39 mm × 21.5 mm
• Net Weight : 77 g
• Gross Weight : 135 g
• Installation : Surface mount, or mount inside a third-party device
• Certifications : CE
• Anti-corrosion Level : Basic Protection
• Packaging Dimensions : 95 mm × 43 mm × 139 mm
