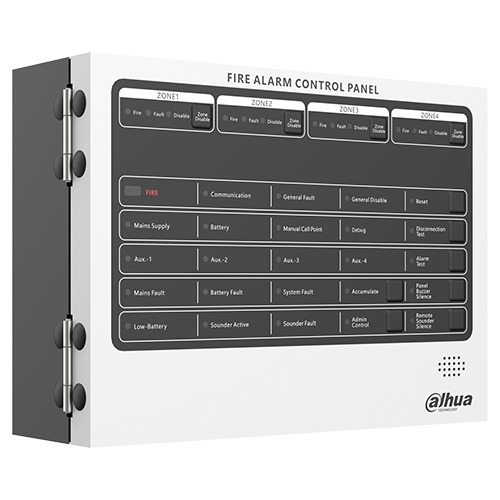

Dahua Conventional Fire Alarm Control Panel (4 Zones) HY-C102-4

• 90VAC to 270VAC main power supply ensures the stable operation
• 4 dry contacts make connection flexible
• Ethernet interfaces enables communication with IoT platform
• RS-485 interface contributes to convenient integration
• Record and export capacity of historical events for each of fire, fault and operation

Specifications

• Number of Zones : 4
• Zone Capacity : 32 detectors per zone
• Main Power : AC90-240V/50Hz, 60Hz
• Backup Power : 2 lead-acid batteries (12V/2.5Ah each)
• Output Current : 2A
• Sounder Output : Fault: 50dB / Alarm: 60dB
• Fire Bell Output : DC 28V/500mA
• Dimensions : 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
• Weight : 3.5 kg / 5 kg (with 2 batteries)
• Operating Temperature : –10°C to +50°C (+14°F to +122°F)
• Operating Humidity : ≤ 95% RH (no condensation)
• Protection Grade : IP30
• Installation : Wall mount
• Compliance Standard : EN54-2,EN54-4
