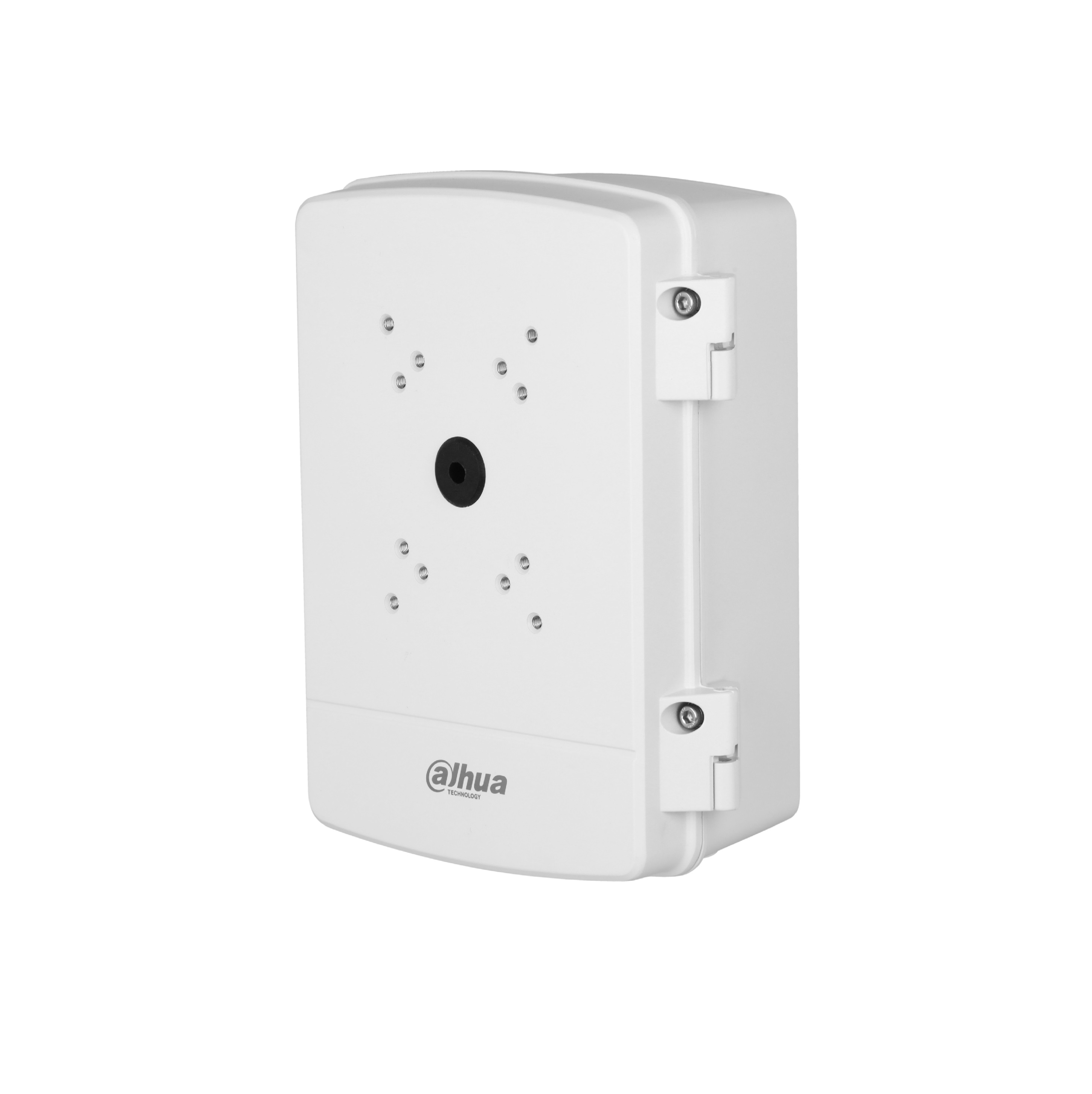

Dahua Junction Box Water Proof For PTZ PFA6400S

Water-proof Power Box

• Made from aluminum alloy and SECC steel
• IP66 rated
• Easy to install, it supports the wall mount, pole mount and corner mount installation methods
• Highly adaptable, it can be used with PTZ cameras and IPCs
• Large enclosure that can accommodate many types of power

Specifications

Structure

• Casing Material : Aluminum alloy & SECC
• Product Dimensions : 297.2 mm × 248.0 mm × 130.7 mm (L × W × H)
• Appearance Color : White
• Net Weight : 3.38 kg
• Gross Weight : 3.86 kg
• Load Bearing : 8.0 kg
• Installation : Wall mount; pole mount; corner mount
• Screw Thread Type : G1/2
• Packaging Dimensions : 366.0 mm × 298.0 mm × 183.0 mm  (L × W × H)

Environment

• Protection : IP66
• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : <90% (RH)
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : 10%–90% (RH)
• Anti-corrosion Level : Basic Protection
