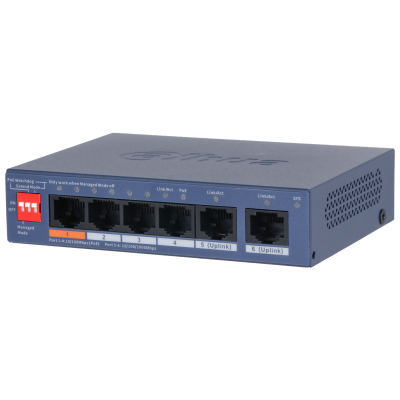

Dahua PoE Cloud Switch 4port +2UP 60W CS4006-4ET2GT-60

• 6-Port Cloud Managed Desktop Switch with 4-Port PoE
• 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports.
• 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port.
• DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
• Wide operating temperature ranging from –10 °C to 55 °C.
• Supports VLAN and loop protection.
• WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
• Easy config to auto detect and set up network and security systems.

Specifications

Basic

• Layer : Layer 2
• Switching Capacity : 4.8 Gbps
• Packet Forwarding Rate : 3.57 Mpps
• Description of Function Slots : Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) / Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• Storage Temperature : –40 °C to +70 °C (–40 °F to +158 °F)
• Storage Humidity : 5%–95% (RH), non-condensing
• Power Supply : External power supply: 53 VDC, 1.22 A
• Power Consumption : Idling: ≤3 W / Full load: 65 W
• Statics Protection : Air discharge: 8 kV / Contact discharge: 6 kV
• Lightning Protection : Common mode: 6 kV
• Net Weight : 0.2 kg (0.44 lb)
• Gross Weight : 0.76 kg (1.68 lb)
• Product Dimensions : 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
• Packaging Dimensions : 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
• Casing Material : Sheet metal
• Installation : Desktop mount; wall mount

PoE

• PoE : Yes
• PoE Power : Port 2-4≤30 W, port 1≤60 W, total≤60 W
• PoE Protocol : IEEE802.3af ; IEEE802.3at ; Hi-PoE
• PoE Power Consumption Management : PoE power consumption management; PoE power on/off; turns off PoE if overload is detected
• PoE Pin Assignment : 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）
• Long Distance PoE Transmission : Yes

Hardware

• DIP Switch : Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. / PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) / Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
• Reset Button : 1

Performance

• MTBF : 232.62 years
• Packet Buffer Size : 4 Mbit
• Jumbo Frame : 9216 Byte
• MAC Table Size : 2K
• Communication Standard : IEEE 802.3; / IEEE 802.3u; / IEEE 802.3x; / IEEE 802.3ab; / IEEE 802.3az
• VLAN Number : 32

Feature

• VLAN Function : IEEE 802.1Q VLAN
• Port Feature : IEEE 802.3x Flow Control / Unknown Unicast Suppression / Multicast Storm Control / Broadcast Storm Control / MAC+Port Binding / Loop Prevention
• Mirror : N:1 Mirroring; / Local Port Mirroring
• Reliability : LLDP
• DHCP Function : DHCP Client
• Security : Port Isolation
• Equipment Management : Web Management / Cloud Management / Logs / Fault Alarm

General

• Packing List : 1 × Quick Start Guide / 1 × Legal and Regulatory Information / 1 × Power Adapter / 1 × Power Cord
