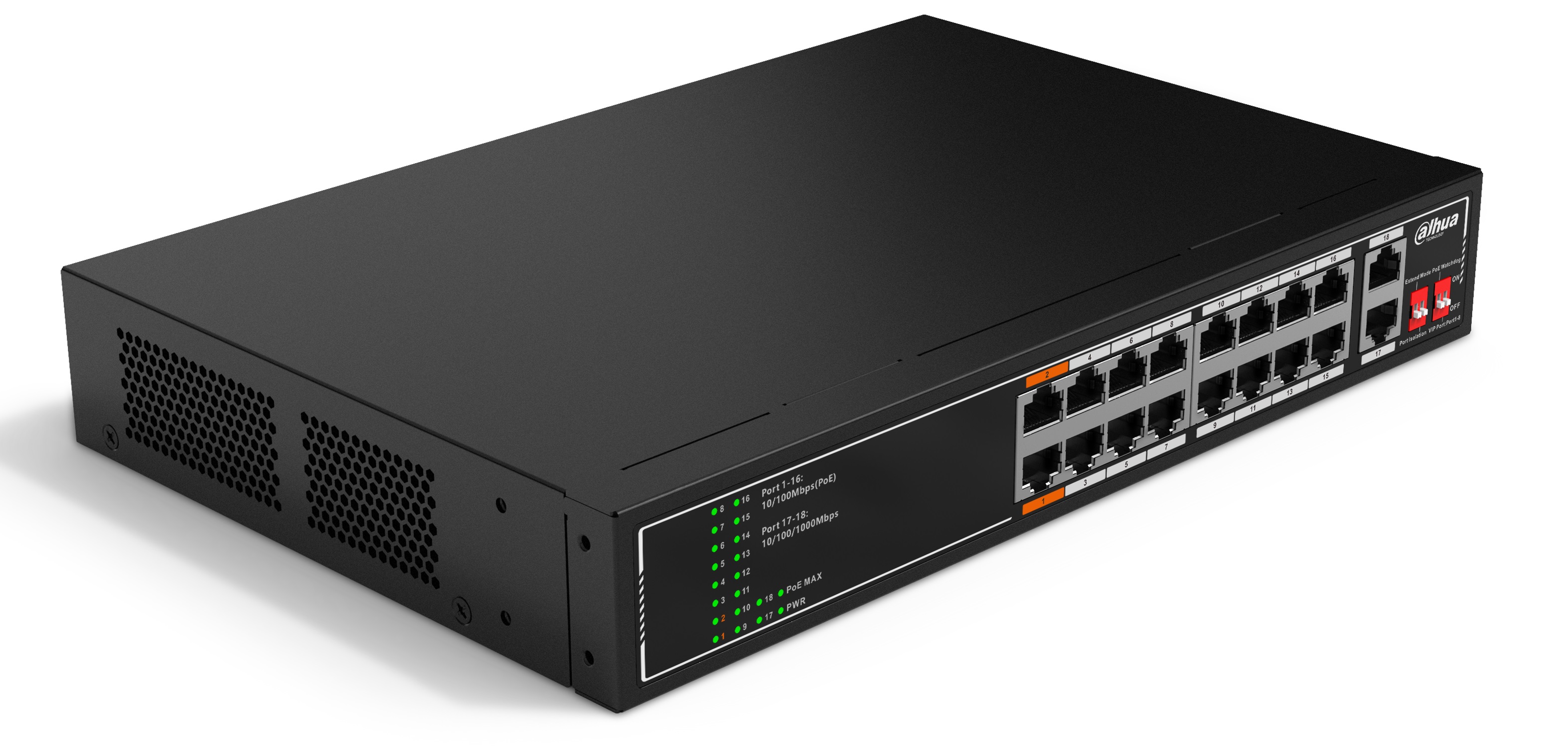

Dahua PoE Switch 16port+2GUP 135W SF1018LP

• Intelligent PoE
• PoE watchdog
• Long distance PoE transmission
• Smooth transmission
• Wide operating temperature: –10 °C to +55 °C (+14 °F to +131 °F)
• Port isolation
• VIP port

Specifications

Hardware

• Included Power Adapter : Yes
• PoE : Yes
• Ethernet Port : Port 1-24:24 × RJ-45 10/100Mbps(PoE) / Port 17-18:2 × RJ-45 10/100/1000Mbps(Uplink)
• Optical Port : 0
• Ethernet Port Speed : 10/100 Mbps
• Ethernet Port Uplink Speed : 10/100/1000 Mbps
• Reset Button : 0
• Power Supply : Built-in power supply: 100–240 VAC, 50/60 Hz, 2.83A
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 10%–90% (RH), non-condensing
• Storage Temperature : –40 °C to +85 °C
• Storage Humidity : 5%–95% (RH), non-condensing
• Power Consumption : Idling: 5 W; / Full load: 135 W

Performance

• Layer : Layer 2
• Management Type : No
• Smart Managed Switch : No
• MTBF : 51.15 years
• Switching Capacity : 8.8 Gbps
• Packet Forwarding Rate : 6.5472 Mpps
• Packet Buffer Size : 4 Mbit
• Jumbo Frame : 9K Byte
• MAC Table Size : 8K
• Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab

Feature

• PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE
• PoE Power : Port 1–2 ≤ 60 W; / Port 3–16 ≤ 30 W; / Total ≤ 135 W
• Intelligent PoE : Support PoE power prioritizing on port number
• PoE Pin Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
• ePoE : No
• Long Distance PoE Transmission : Yes
• Spanning Tree Protocol : No
• VLAN Function : No
• Link Aggregation : No
• IEEE 802.3x Flow Control : Yes
• ARP : No
• DHCP Function : No
• Security : No
• QoS/ACL : No
• IPv6 : No
• Equipment Management : No

General

• Statics Protection : Air discharge: 8 kV; / Contact discharge: 6 kV
• Lighting Protection : Common mode: 4 kV; / Differential mode: 2 kV
• Net Weight : 1.71 kg
• Gross Weight : 2.37 kg
• Product Dimensions : 285.0 mm × 189.5 mm × 43.7 mm
• Packaging Dimensions : 369 mm × 299 mm × 81 mm
• Casing Material : SGCC
• Installation : Desktop mount; rack mount; wall mount
• Certifications : CE
