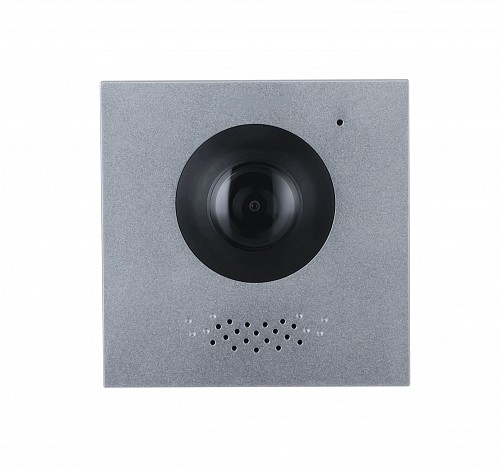

Dahua VD IP Doorphone Camera VTO4202F-P-S2

• Anodized alumimum front panel
• CMOS low illumination 2MP HD colorful 160° fisheye camera
• Video intercom function
• Access control function that supports two locks
• Mobile phone app, talk to the visitor or unlock the door remotely on your phone
• Compatibility 2-wire Interface & RJ45 Interface
• IK07&IP65
• Support H.265
• Support surface and flush mount
• Modules make the device with great expansibility

Specifications

System

• Main Processor : Embedded processor
• Operating System : Embedded Linux Operation System
• Button Type : Mechanical
• Interoperability : ONVIF; CGI
• Network Protocol : SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP

Basic

• Camera : 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
• Field of View : Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
• Focal Length : 1.9 mm
• WDR : 120 dB
• Noise Reduction : 3D DNR
• Video Compression : H.265
• Video Resolution : 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) / 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps)
• Video Frame Rate : 25 fps
• Video Bit Rate : 256 Kbps to 4 Mbps
• Light Compensation : Auto IR
• Day/Night : Auto (ICR)
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1 channel
• Audio Output : Built-in speaker
• Audio Mode : 2-way voice communication
• Audio Enhancement : Echo suppression/digital noise reduction
• Audio Bit Rate : 16 KHz, 16 Bit
• Status Indicator Light : 3

Port

• RS-485 Port : 1
• Alarm Output : 1
• Power Output : 1-ch 12 VDC 100mA
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1
• Network Port : One RJ45 10M/100M network port
• Storage : Micro SD card (up to 64GB)

General

• Appearance color : Silver
• Power Supply : Dahua 2-wire switch (max. power supply distance 50 m) / DC 48V 1A / Standard PoE
• Power Adapter : Optional
• Installation : Flush/surface mount
• Certifications : CE; FCC; UL
• Accessory (Optional) : Flush/surface mount
• Product Dimensions : 100 mm × 100 mm × 36 mm
• Protection : IK07; IP65
• Operating Temperature : –30°C to +60°C
• Operating Humidity : 10%–90% (RH, non-condensing)
• Operating Altitude : 0 m–3000 m
• Power Consumption : ≤ 12W
• Net Weight : 0.35 kg
• Gross Weight : 0.4 kg
