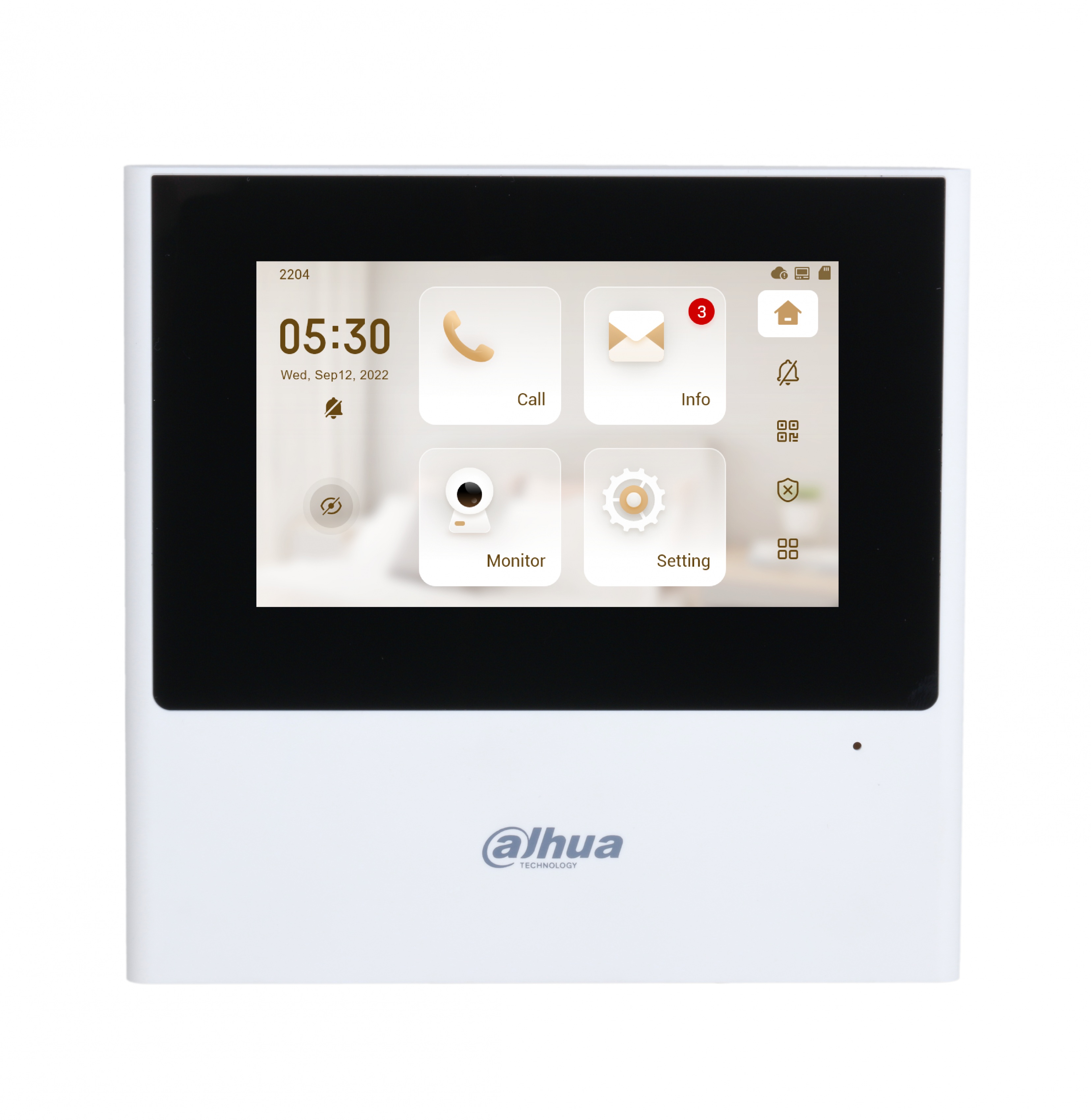

Dahua VD IP Doorphone Monitor 4.3inch With Wi-Fi VTH2611L-WP (White)

• 4.3" TFT capacitive touchscreen.
• Unlock the door.
• Set DND period.
• IPC surveillance.
• 4-channel alarm input and 1-channel alarm output.
• Supports standard PoE.
• Ethernet and Wi-Fi.

Specifications

System

• Main Processor : Embedded Processor
• Operating System : Embedded Linux OS
• Network Protocol : UDP; TCP; IPv4; RTSP; SIP; RTP

Basic

• Screen Type : Capacitive Touchscreen
• Display Screen : 4.3" TFT display
• Screen Resolution : 480 (H) × 272 (V)
• Audio Compression : G.711A; G.711U; PCM
• Audio Input : 1 channel
• Audio Output : 1 built-in speaker and 1 receiver speaker
• Audio Mode : Two-way audio
• Audio Enhancement : Echo suppression/digital noise reduction
• Audio Bit Rate : 16 kHz, 16 bit

Function

• Communication Mode : Full digital
• Information Release : Text messages can be received and viewed on the indoor monitor
• Elevator Control : You can control the elevator through the indoor monitor
• DND Mode : Do not disturb period can be set.
• Number of Extensions : Apartment: 4; Villa: 9
• Wi-Fi : Yes
• Wireless Standard
• IEEE802.11b; 802.11g; 802.11n
• Wireless Frequency Range : 2.4 GHz

Port

• Alarm Input : 4 channels
• Alarm Output : 1
• Network Port : 1 × RJ-45 10/100 M self-adaptive Ethernet port

General

• Appearance Color : White
• Casing Material : ABS
• Power Supply : 12 VDC, 1 A; standard PoE (IEEE 802.3af/at)
• Power Adapter : Not included
• Installation : Surface mount
• Accessory : Surface mount bracket, alarm ribbon cable, and power-supply pins are provided
• Product Dimensions : 136.0 mm × 140.0 mm × 25.5 mm (5.35" × 5.51" × 1.00")
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 10%–95% (RH), non-condensing
• Power Consumption : ≤4 W (standby); ≤6 W (working)
• Gross Weight : 0.21 kg (0.46 lb)
