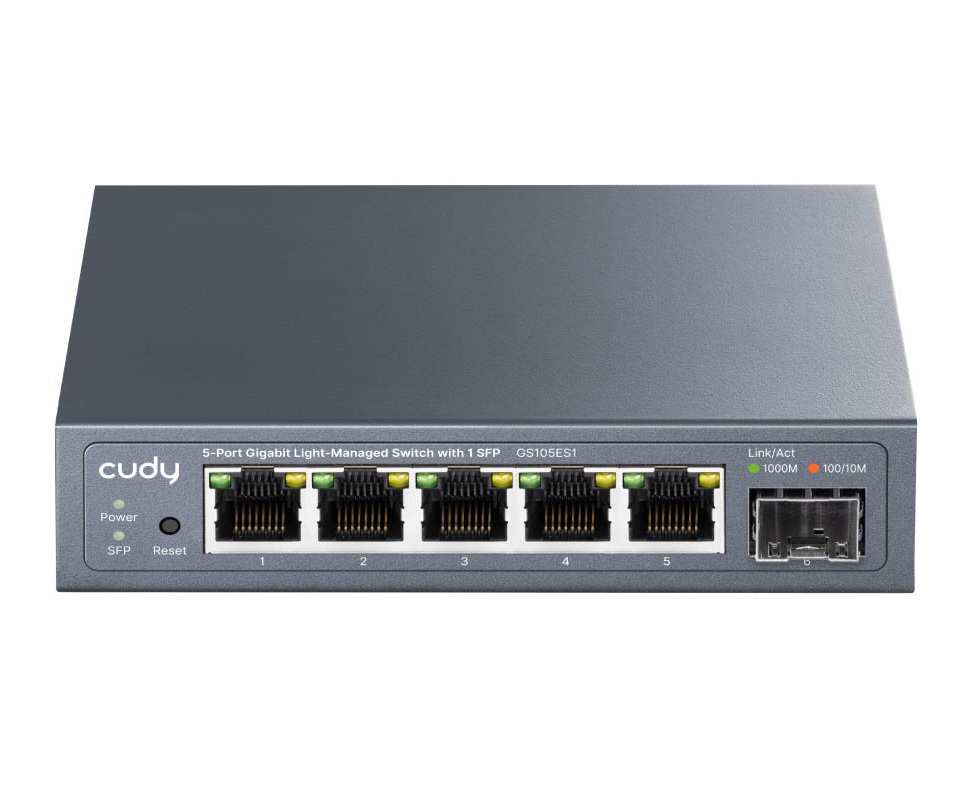

Cudy Switch Gigabit Ethernet Cloud Easy-Managed 5-Port + SFP GS105ES1

The Cudy GS105ES1 1.0 is a compact 5-Port Gigabit Easy-Managed Switch engineered with an additional 1.25G SFP slot, offering a highly adaptable and ultra-reliable networking solution for small office environments, retail shops, and remote network nodes. Housed in a silent, fanless metal enclosure, it packs essential smart Layer 2 management tools—including multiple VLAN configurations, QoS traffic prioritization, and loop mitigation—into a desktop-sized device. This switch provides an ideal balance for setups that require fast local copper wiring paired with a long-distance fiber uplink.

• Versatile Uplink Options: Combines 5 Gigabit RJ45 ports with 1 dedicated 1.25G SFP slot to facilitate long-distance optical fiber extensions or local backbone connections.
• Streamlined Security Options: Supports 802.1Q, MTU, and Port-Based VLANs, allowing quick and efficient segmentation of guest traffic, POS terminals, or corporate systems.
• Proactive Loop Countermeasures: Features automated Loop Detection and Prevention systems that intercept and block disruptive network loops, flashing an intuitive LED indicator for fast troubleshooting.
• Intelligent Traffic Handling: Employs DSCP/802.1p QoS for latency-critical audio/video streams and IGMP Snooping to direct multicast streams directly to intended end-devices.
• Quiet and Resilient Construction: Utilizes a fanless, heavy-duty metal chassis equipped with built-in lightning surge and ESD safeguards, enabling a perfectly silent desktop or wall-mounted deployment.

Specifications

• Model Version: GS105ES1 1.0
• Interfaces: 5 × 10/100/1000 Mbps RJ45 Ports, 1 × 1.25G SFP Slot
• Max Switching Capacity: 12.5 Gbps
• Max Forwarding Rate: 8.929 Mpps
• MAC Address Table: 2048 entries
• Packet Buffer: 1 Mbit
• Jumbo Frame: 15 KB
• VLAN Support: Up to 4096 VLAN IDs (802.1Q, MTU, Port-Based)
• QoS Configuration: 802.1p QoS, DSCP QoS, Port-Based QoS
• L2 Management Features: Web-Based Management Interface, IGMP Snooping, Loop Prevention, Loop Detection, Port Mirroring, Static Link Aggregation
• Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1q
• LED Indicators: Power, Speed/Link/Act per Ethernet port
• Power Supply: External Power Adapter (DC Jack Input)
• Energy Conservation: 802.3az Energy Efficient Ethernet (EEE) Power Saving Mode
• Casing Material: Metal
• Installation Options: Desktop, Wall-Mount
• Dimensions (W × D × H): 119 × 85 × 28 mm
• Product Weight: 263.2 g
• Operating Temperature: 0 °C to 40 °C
• Operating Humidity: 10% to 90% non-condensing
